51 32... Adjusting vertical dimension of front left or right side window

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 342
51 0 400

Prerequisite:

Vehicle must be standing on its wheels on a level floor
FRONT DOOR correctly adjusted to fit

IMPORTANT: When closing, the door window glass must not jam on the trim strip in any area of the window (window glass breakage).

Necessary preliminary tasks:

Remove OUTER WINDOW CAVITY WEATHER STRIP
Remove FRONT DOOR TRIM PANEL

Vertical dimension

Raise the door window.

Close front door.

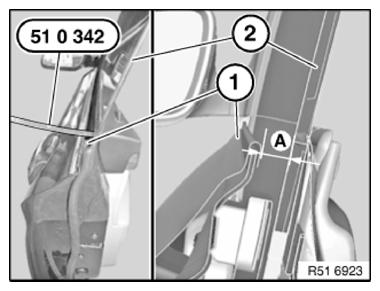

Measure dimension (A) with special tool 51 0 342 between flange (1) and door window glass (2).

A 10.7 mm ± 0.8 mm

Inside of flange edge (1) to door window glass (2) in area of B-pillar.

Fig 1: Inserting Flange And Door Window Glass Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting vertical dimension

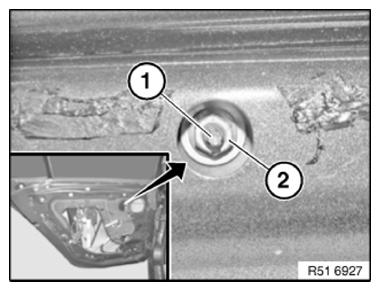

Connect special tool 51 0 400 to adjustment pin (1) and release nut (2).
Tightening torque 51 33 6AZ .
Turn screw (1) to adjust dimension and lock with nut (2). Check dimension.
If necessary, repeat operations.

Fig 2: Identifying Pin And Lock Nut
Courtesy of BMW OF NORTH AMERICA, INC.
