63 11 800 Replacing left LED main light module left

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE .

Necessary preliminary tasks:

Remove HEADLIGHT

Release screws (1).

Tightening torque 63 11 1AZ .

Remove LED main light module (2).

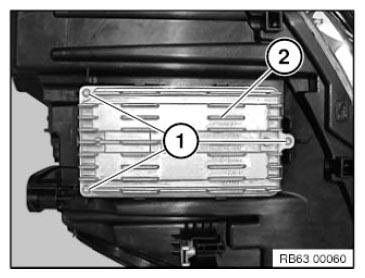

Fig 1: Identifying LED Main Light Module Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Gasket (1) for LED main light module (2) must not be damaged and must be installed free from grease.

Make sure LED main light module (2) is correctly installed.

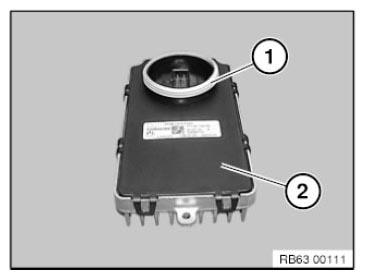

Fig 2: Identifying LED Main Light Module Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
