51 11... Overview of front bumper

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

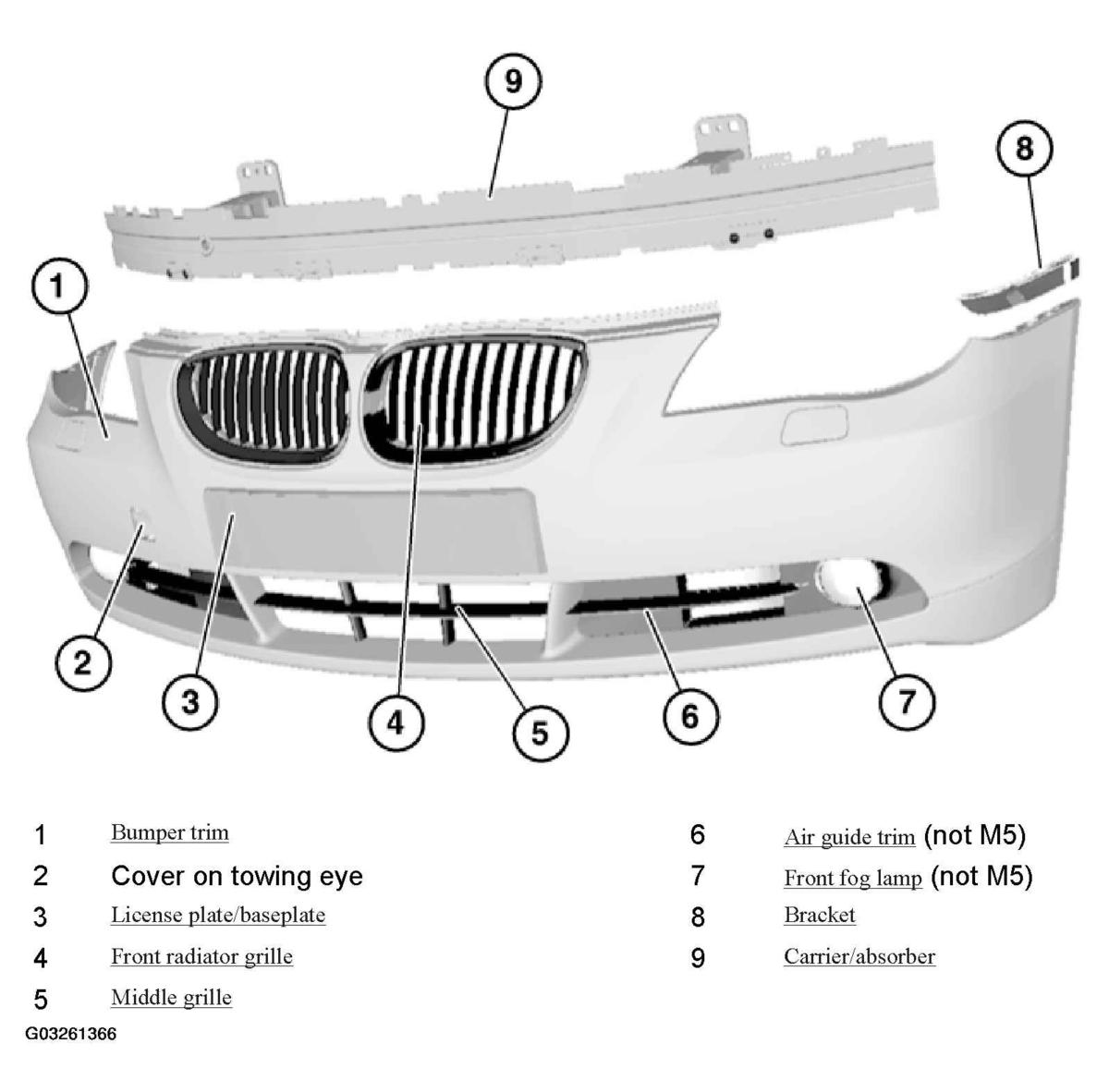

Fig 1: Identifying Front Bumper
G03261366Courtesy of BMW OF NORTH AMERICA, INC.

Illustration created using E60 standard equipment as an example. There may be differences in detail in the case of other equipment specifications.

  1. Bumper trim
  2. Cover on towing eye
  3. License plate/baseplate
  4. Front radiator grille
  5. Middle grille
  6. Air guide trim (not M5)
  7. Front fog lamp (not M5)
  8. Bracket
  9. Carrier/absorber

If equipped with M aerodynamic kit:

Remove front fog lamp trim.
