Circuit Protection Devices
WARNING: This page is about a different car, the 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Auxiliary Fuse Box | In left rear corner of engine compartment. |
| B+ Junction Point | Under left side of dash. |
| Battery Safety Terminal | On right side of luggage compartment, near battery. |
| E-Box | On right rear of engine compartment. |

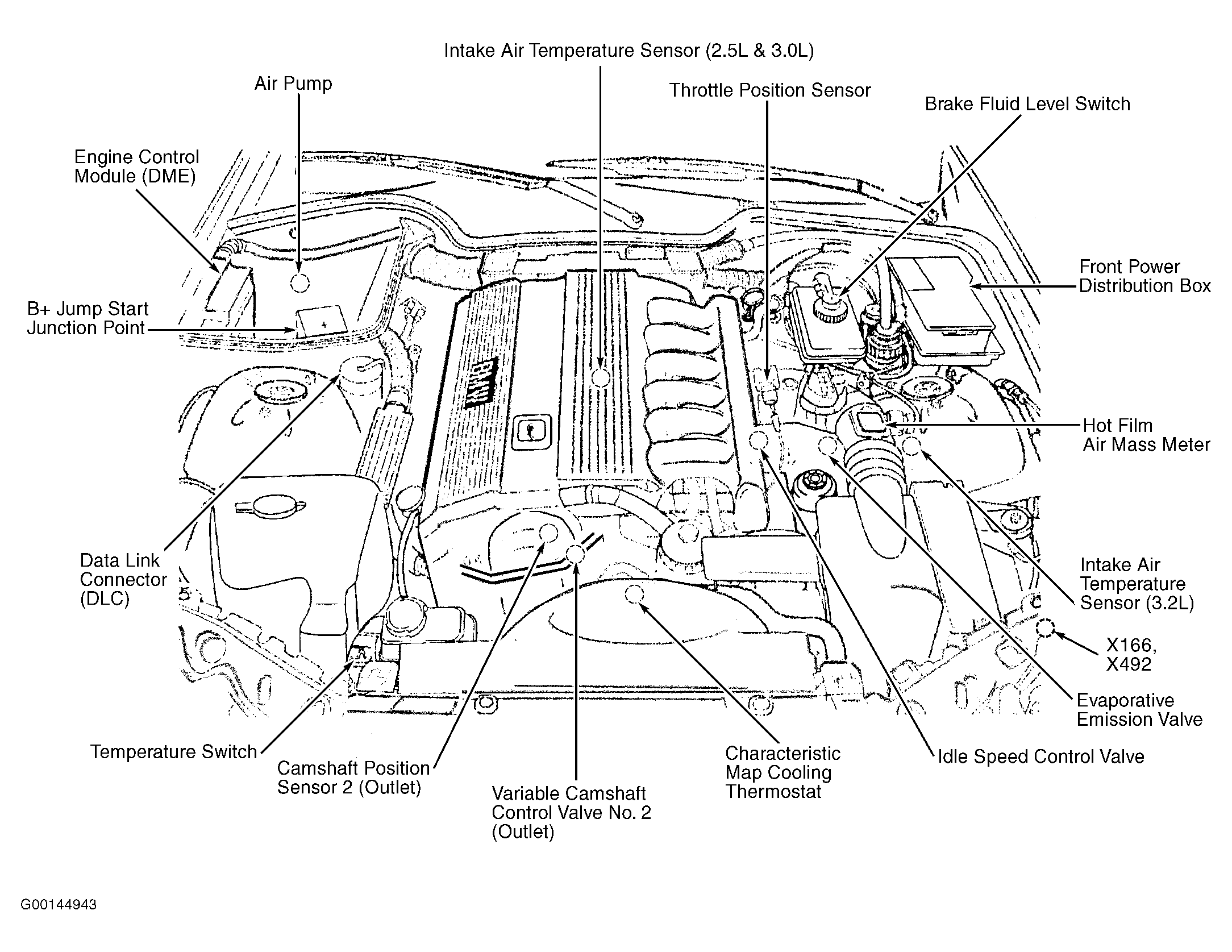

| Front Power Distribution Box | On left rear corner of engine compartment. See Figure . |
| Fuse Holder | Behind front of center console. |
| Fuse Holder in E-box | Right rear of engine compartment in E-box. |
| Fusible Link | On right side of luggage compartment. |
| Relay Panel | Under left side of dash. |
