61 13... Crimping Micro Quadlock System contacts (MQS)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

To crimp MPQ contacts, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 324 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until limit position when handles are pressed together.

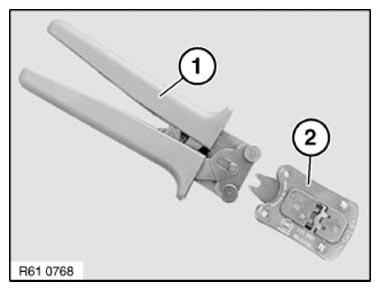

Fig 1: Identifying Crimping Head And Hand Pliers

G10063980

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (1).

Fold up contact carrier (2).

Insert MQS contact (3) in contact carrier (2).

Fold back contact carrier (2).

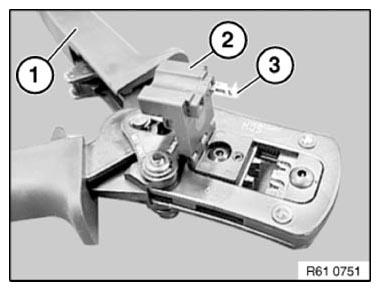

Fig 2: Inserting MQS Contact Into Contact Carrier

G10063981

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION from cables.

Close hand pliers (1) one notch.

Insert stripped cable (2).

Close hand pliers (1) fully.

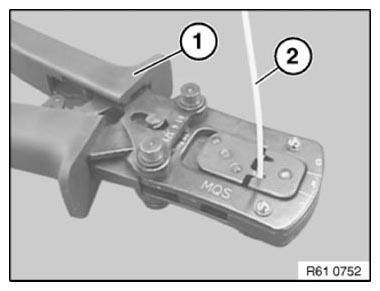

Fig 3: Inserting Stripped Cable

G10063982

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (1).

Open contact carrier (2) gently and carefully remove MQS contact.

IMPORTANT: Check contact for correct crimping.

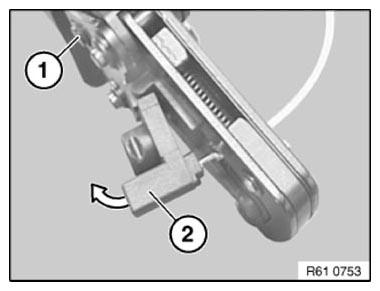

Fig 4: Removing MQS Contact

G10063983

Courtesy of BMW OF NORTH AMERICA, INC.
