61 13... Crimping optical fibres

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

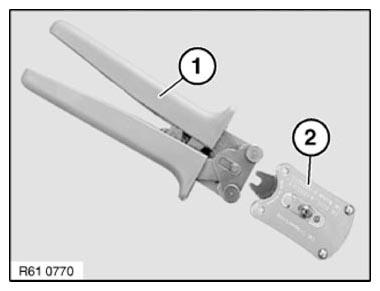

To crimp optical fibres, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 323 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until limit position when handles are pressed together.

Fig 1: Identifying Crimping Head (61 4 323) And Hand Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

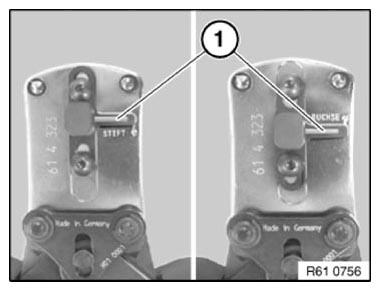

Move contact guide by means of stop lever (1) into corresponding position (pin contact or jack).

Fig 2: Identifying Stop Lever Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (2).

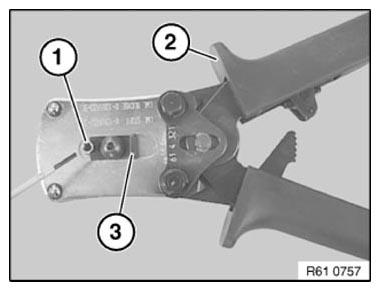

Place pin contact or jack (1) in crimping head and secure with locking lever (3).

Fig 3: Placing Pin Contact/Jack In Crimping Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION FROM OPTICAL FIBRES .

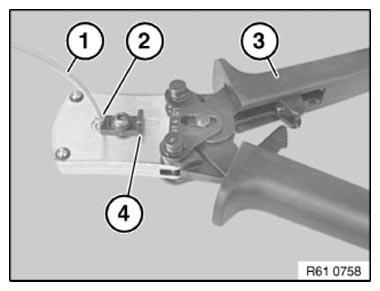

Insert stripped optical fibre (1) until limit position into pin contact or jack (2).

Close hand pliers (3) fully.

Open hand pliers (3) and locking lever (4).

Remove optical fibre (1).

Fig 4: Inserting Stripped Optical Fiber Up To Limit Position In Pin Contact/Jack

Courtesy of BMW OF NORTH AMERICA, INC.

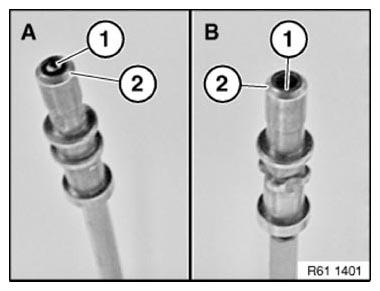

IMPORTANT: Make sure optical fibre is correctly seated in jack.

Right (A)

End of optical fibre (1) must be flush with tip of pin contact (2).

Wrong (B)

End of optical fibre (1) is not flush with tip of pin contact (2).

Fig 5: Identifying Proper And Improper Seating Of Optical Fiber In Jack

Courtesy of BMW OF NORTH AMERICA, INC.
