61 35 177 Removing and installing (replacing) rain/light sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

NOTE: Catches of two-part mirror base cover (1) must not be damaged.

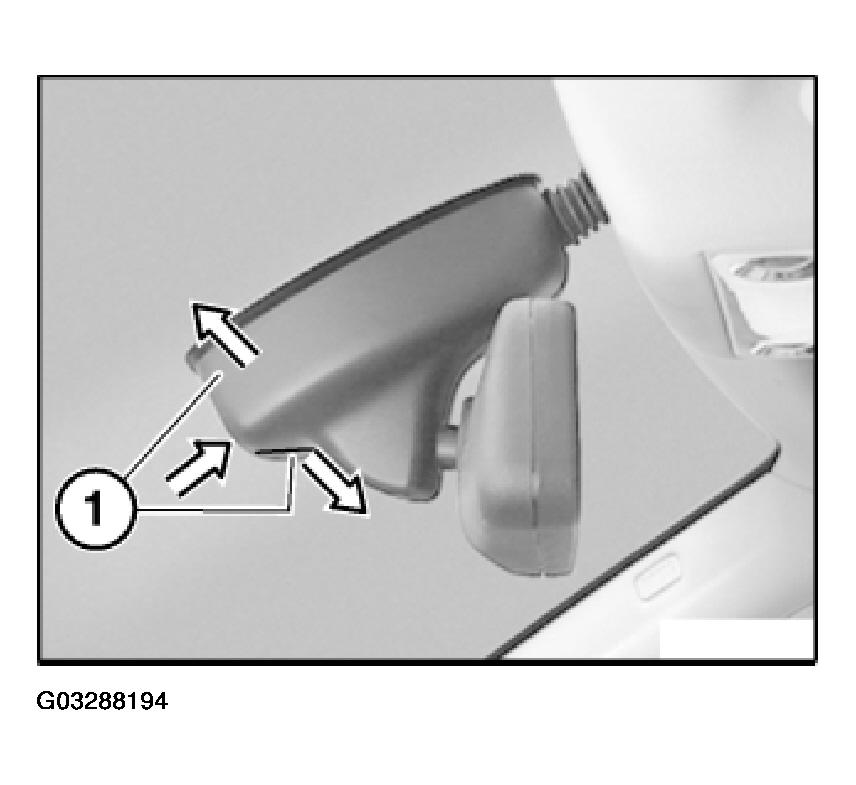

Fig 1: Removing Two-Part Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation:

Do not damage optical element covered by rain/light sensor (2).

If necessary, initialize rain/light sensor, refer to 61 35 679 INITIALIZING RAIN/LIGHT SENSOR .

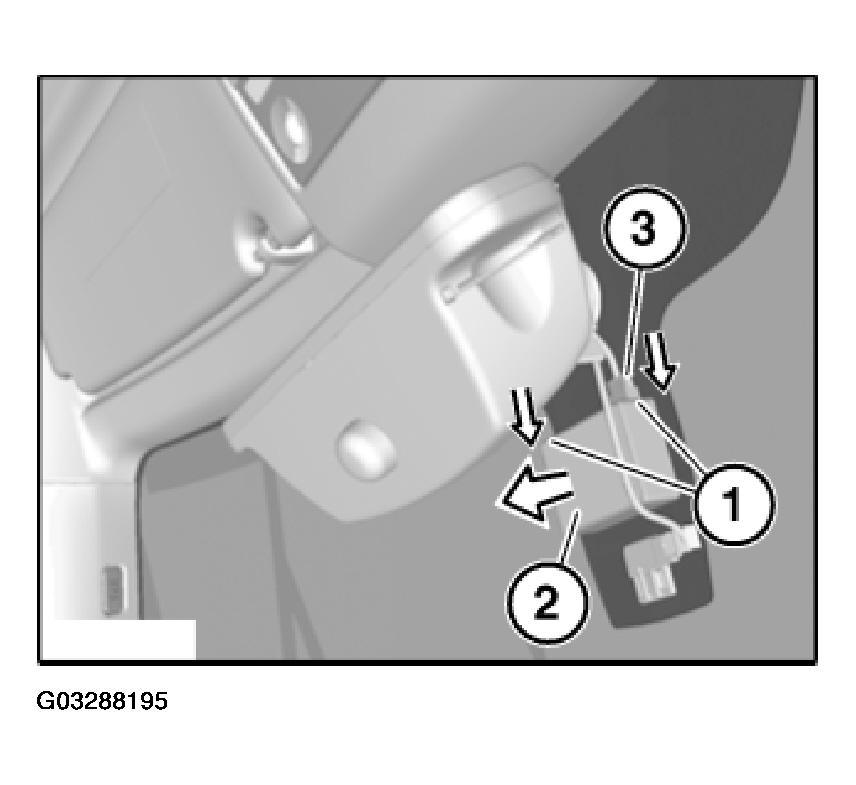

Fig 2: Pressing Locks And Removing Rain/Light Sensor Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
