61 13 ... Base of tab connector housings

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

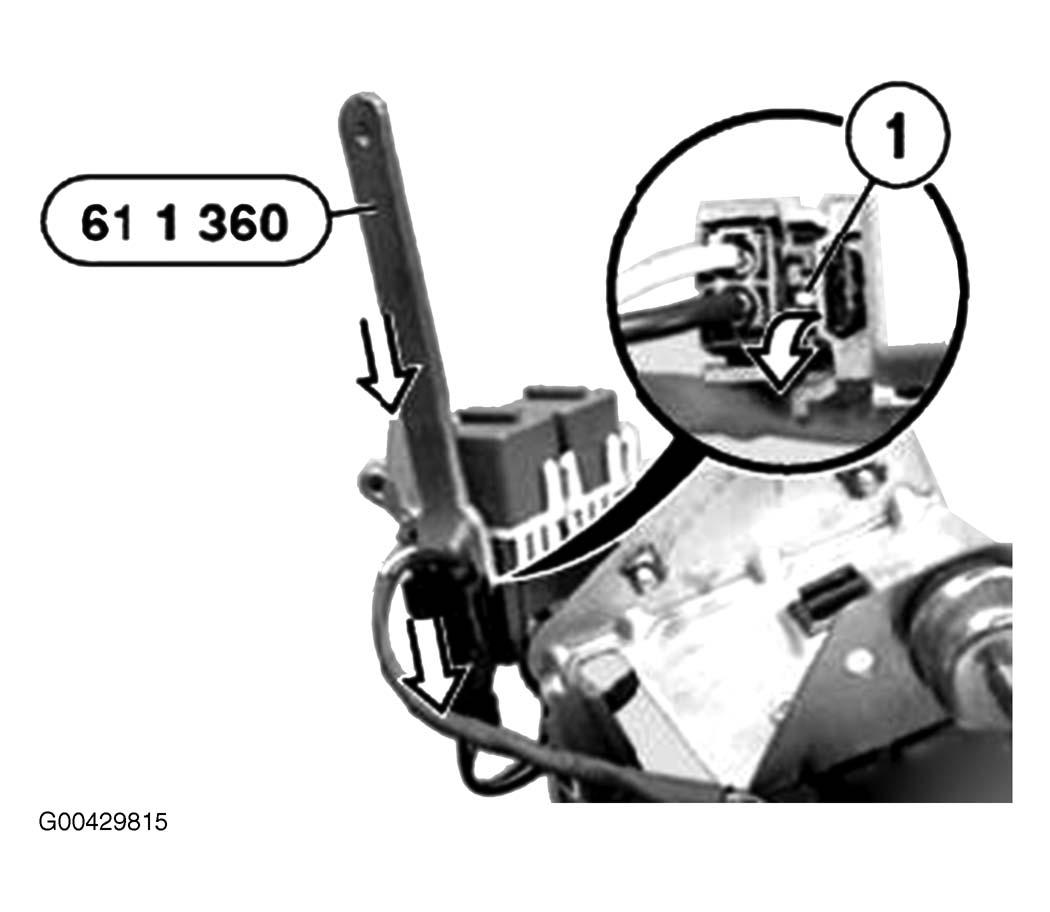

Fig 1: Unlocking Hook (1) With Special Tool 61 1 360 And Sliding Plug Housing Downwards Out Of Base
G00429815Courtesy of BMW OF NORTH AMERICA, INC.
