61 13 ... Crimping annular contacts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

CrimpacII crimping pliers from repair kit 1 are used to crimp annular contacts.

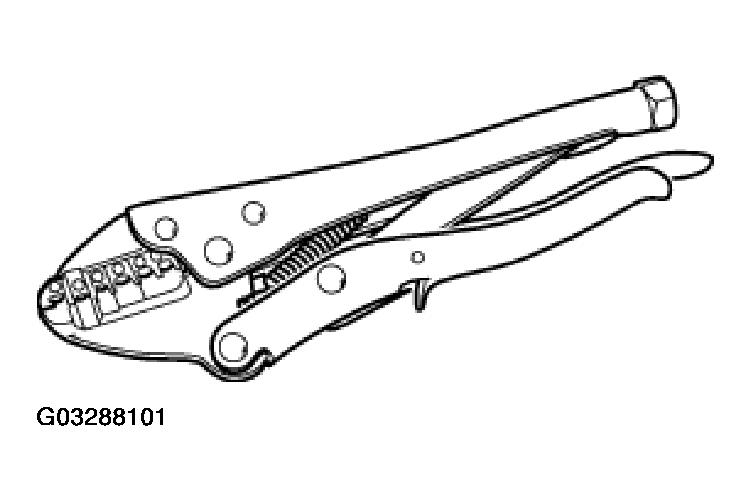

Fig 1: Identifying CrimpacII Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.

Insert annular contact (2) in crimping pliers (1).

Close crimping pliers (1) gently and keep closed.

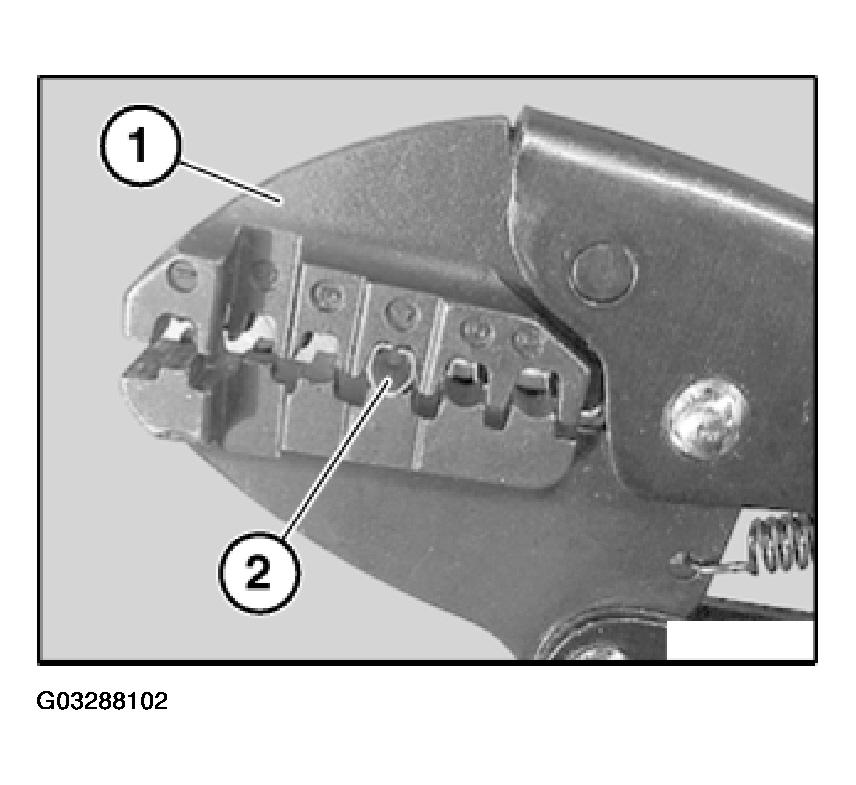

Fig 2: Inserting Annular Contact In Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables, refer to 61 13 CUTTING TO LENGTH AND STRIPPING INSULATION FROM CABLES .

Feed stripped cable (1) into annular contact (2) completely.

Close crimping pliers (3) fully.

Open crimping pliers (3) and remove cable (2).

NOTE: Check contact for correct crimping, refer to 61 13 CRIMPING ON STOP PARTS .

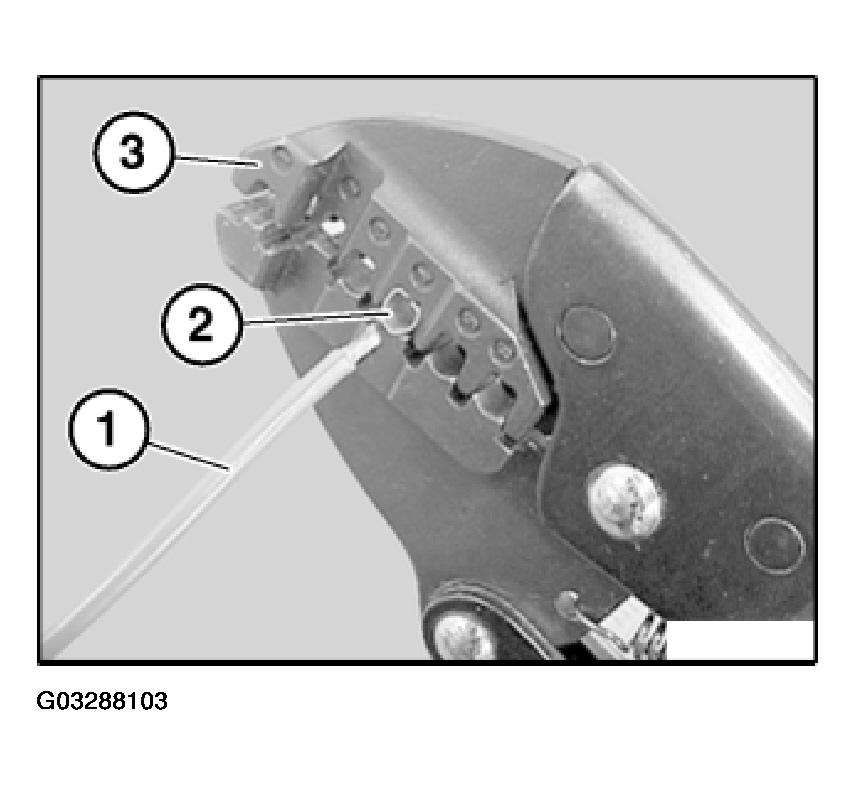

Fig 3: Opening Crimping Pliers And Removing Cable

Courtesy of BMW OF NORTH AMERICA, INC.
