61 13 ... Unlocking and disconnecting different plug connections

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

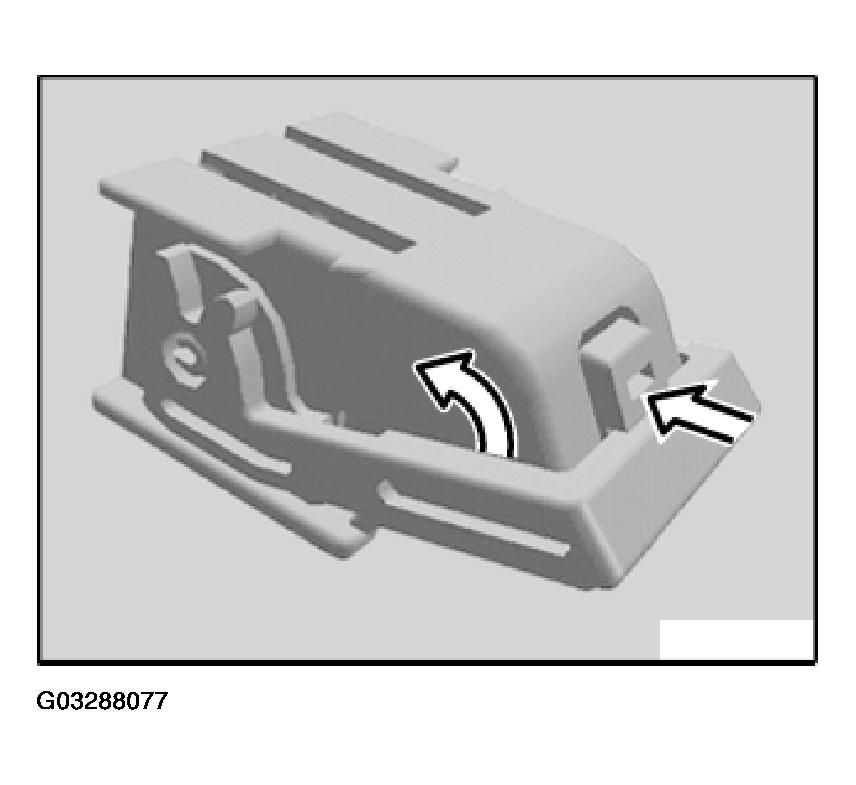

Fig 1: Pressing Lock And Open Clip

G03288077

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

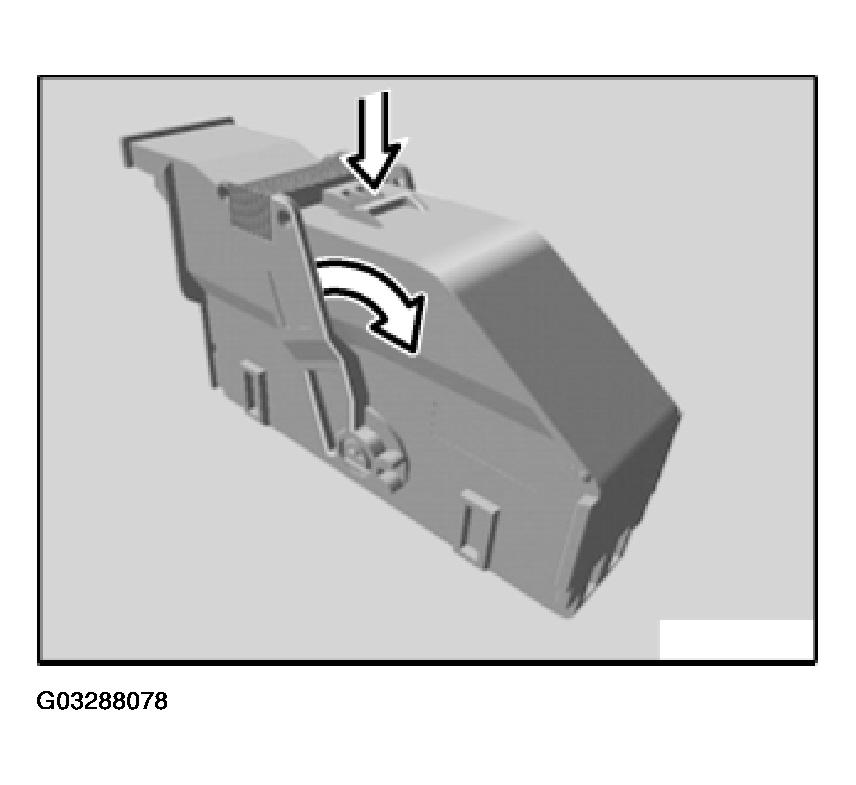

Fig 2: Pressing Lock And Open Clip

G03288078

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

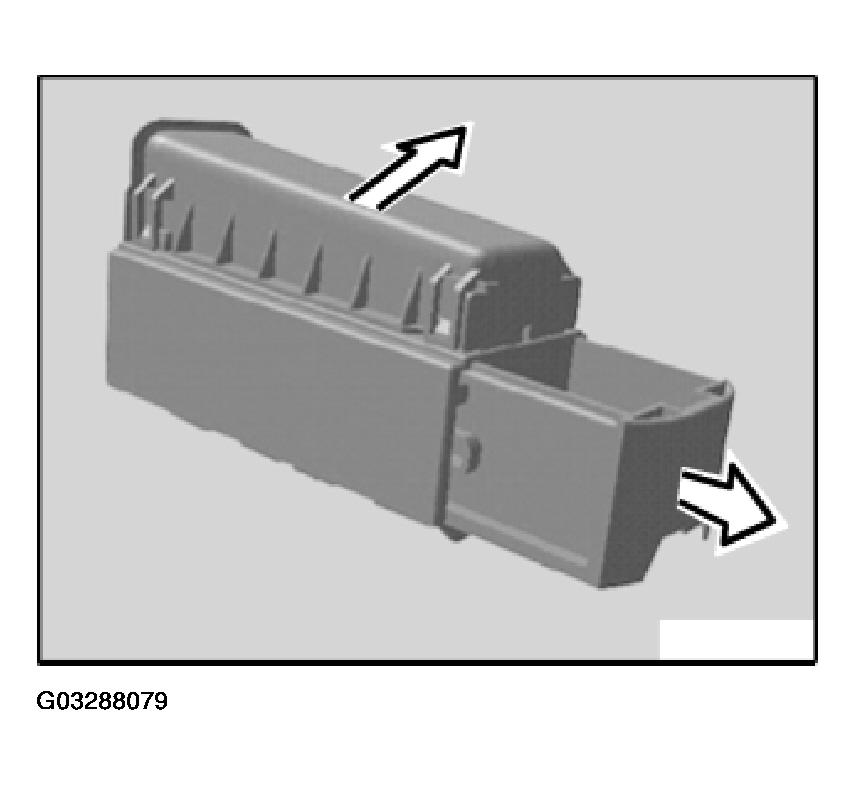

Fig 3: Opening Clip And Disconnecting Plug Connection

G03288079

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

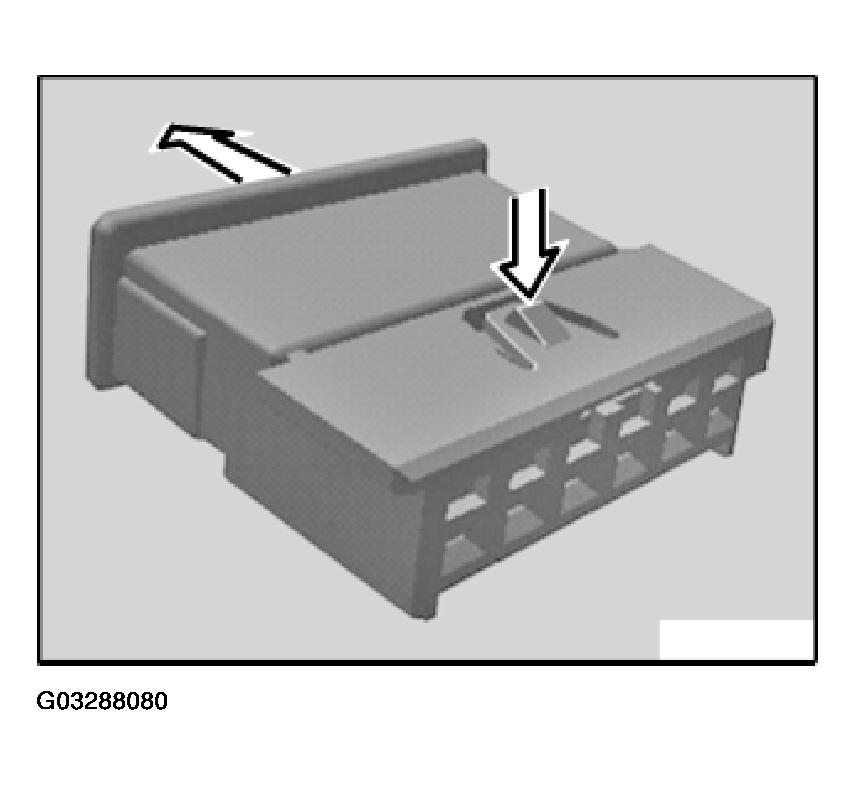

Fig 4: Pressing Lock And Disconnecting Plug Connection

G03288080

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

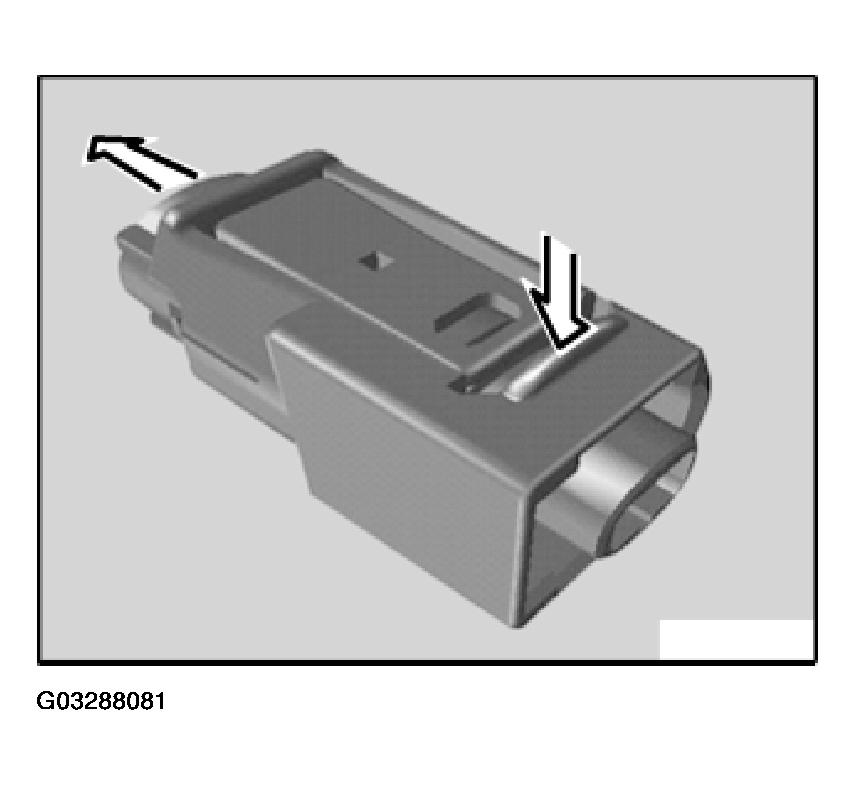

Fig 5: Pressing Lock And Disconnecting Plug Connection

G03288081

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

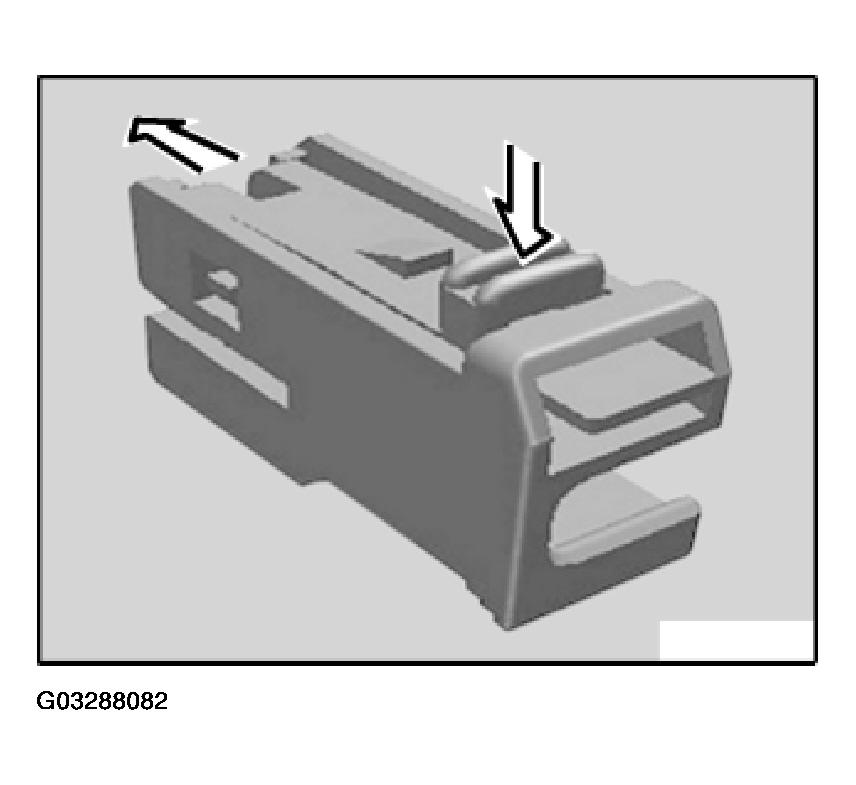

Fig 6: Pressing Lock And Disconnecting Plug Connection

G03288082

Courtesy of BMW OF NORTH AMERICA, INC.

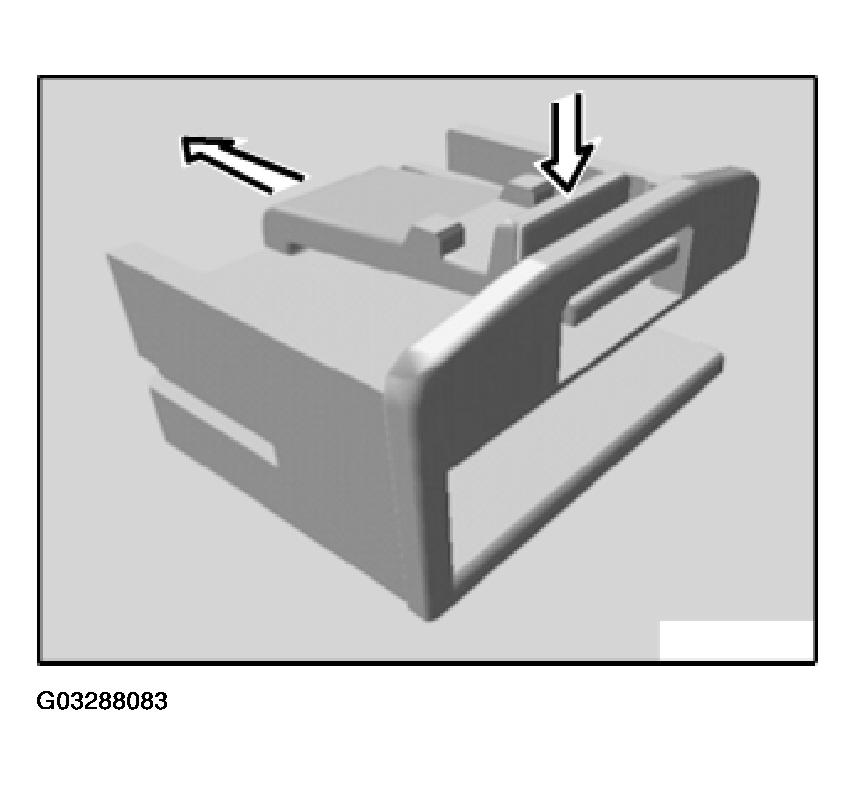

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Pressing Lock And Disconnecting Plug Connection

G03288083

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

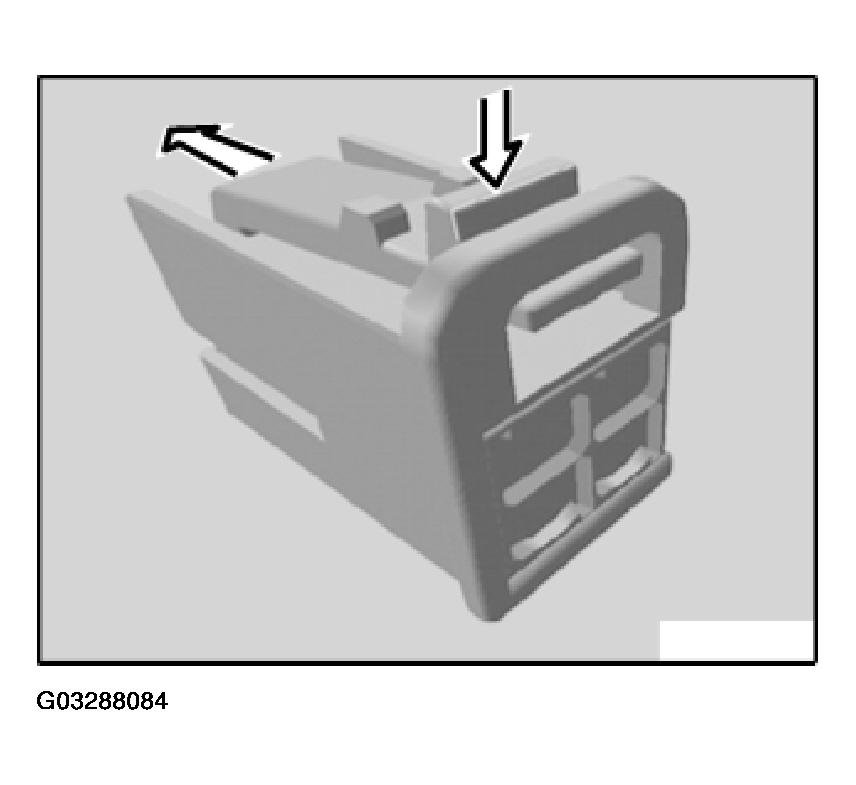

Fig 8: Pressing Lock And Disconnecting Plug Connection

G03288084

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

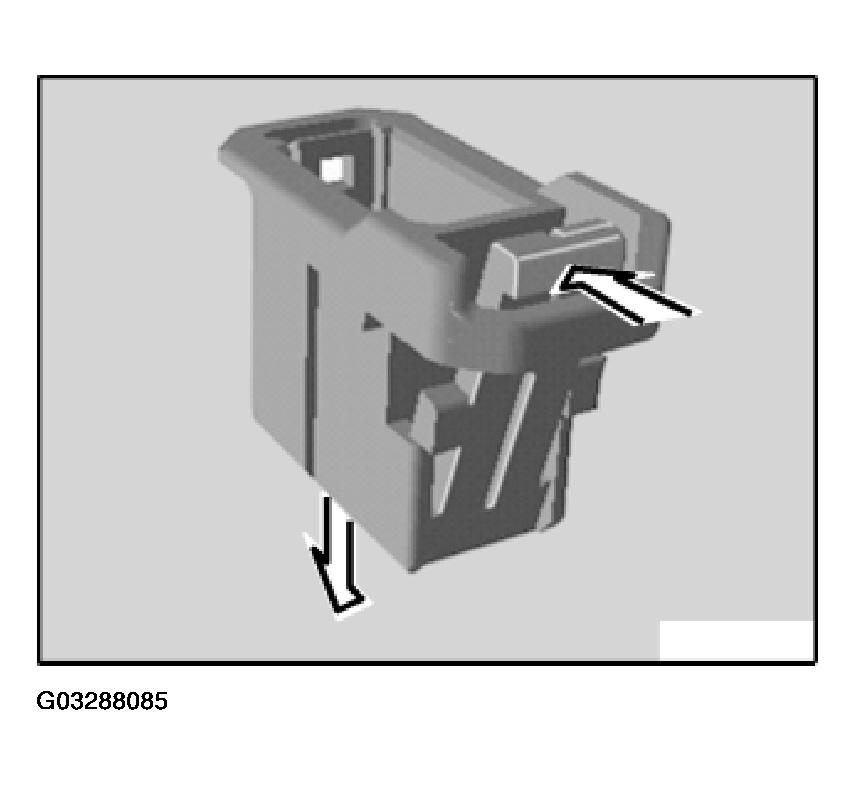

Fig 9: Pressing Lock And Disconnecting Plug Connection

G03288085

Courtesy of BMW OF NORTH AMERICA, INC.
