Seat belt buckle switch
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The automatic engine start-stop uses the seat belt buckle switch to identify whether the driver's 3-point automatic-reel belt is closed. If the driver's 3-point automatic-reel belt is not closed, the automatic engine start-stop reacts differently according to the driving condition:
- When the engine is running, a switch-off inhibitor is set and the engine is not stopped.
- If the engine is off the automatic engine start-stop is deactivated. A restart is possibly solely by using the start/stop button.

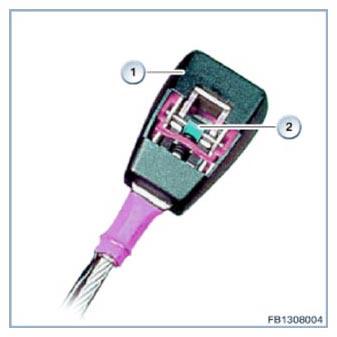

| Item | Explanation |
|---|---|
| 1 | Seat belt buckle |
| 2 | Seat belt buckle switch |
