System functions: Displays

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

Various displays for the automatic engine start-stop are available to the driver as a feedback signal. All messages for the automatic engine start-stop are output on the instrument cluster (KOMBI).

Distinction is drawn between the following displays:

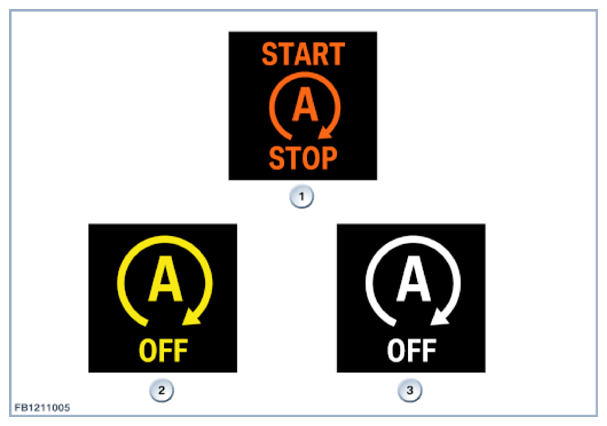

Fig 1: Display - Automatic Engine Start-Stop Screen
G09908092Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Automatic engine start-stop activated, engine stopped and start-capable (color may vary model-specific)
2 Automatic engine start-stop function failed
3 Automatic engine start-stop deactivated
