Check diesel particulate sensor

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

Check whether a diesel particulate sensor with the notches specified in Fig 1 is mounted. If no notches can be detected on the sensor (Fig 2), replace diesel particulate sensor.

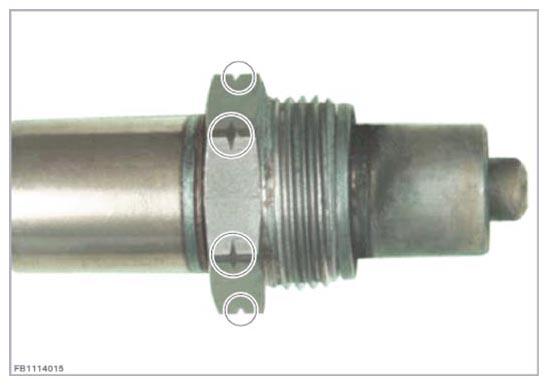

Fig 1: Identifying Current Diesel Particulate Sensor
G09908201Courtesy of BMW OF NORTH AMERICA, INC.

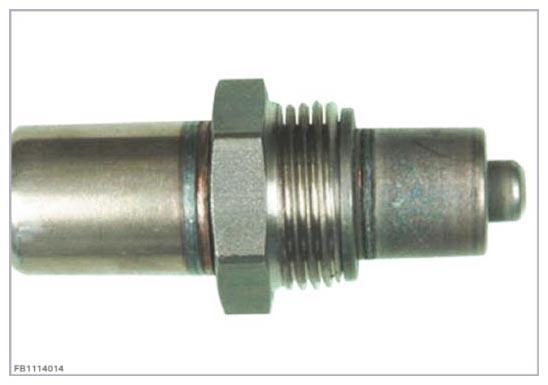

Fig 2: Identifying Diesel Particulate Sensor
G09908202Courtesy of BMW OF NORTH AMERICA, INC.
