Oil pump
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The engine S63 TOP has a volume flow rate controlled oil pump with pressure stage and compression stage in the same housing. The oil pump is securely screwed onto the upper part of the oil sump.
The oil pump is driven via the sleeve type chain from the crankshaft. The sleeve type chain is kept under tension by a tensioning rail.
A pump is used as a vacuum stage, which delivers the engine oil from the front oil sump area to the rear oil sump area with an additional intake pipe.
The volume flow controlled pendulum slide cell pump is used to supply the engine with oil pressure. The intake snorkel is positioned in the rear area of the oil sump to ensure safe oil supply.

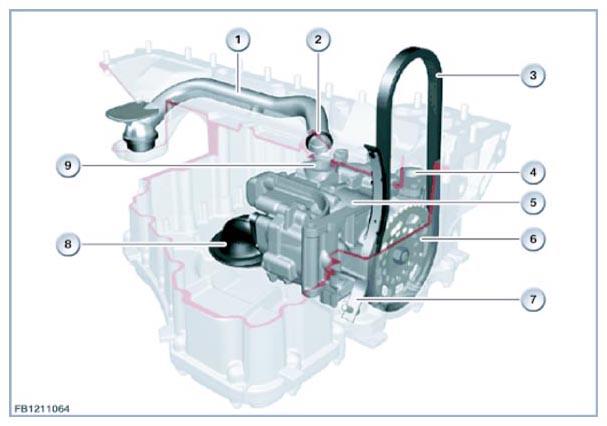

The graphic below shows the oil sump components and their drives.
| Index | Explanation |
|---|---|
| 1 | Return line |
| 2 | O-ring |
| 3 | Drive chain for oil pump |
| 4 | Oil pump output |
| 5 | Pendulum slide cell pump |
| 6 | Oil pump camshaft sprocket |
| 7 | Chain tensioner |
| 8 | Intake pipe for compression stage |
| 9 | Intake pipe for intake stage |
