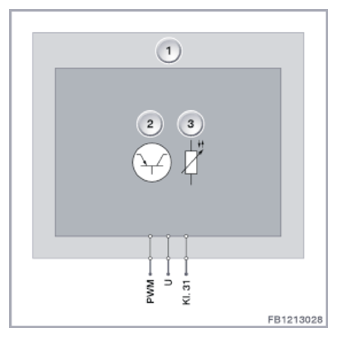

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The ethanol sensor is connected via a 3-pin electrical connector.
The sensor receives its power supply from the engine management ECU. The signal from the ethanol sensor is transmitted by pulse width modulation.
| Item | Explanation |
|---|---|
| 1 | Ethanol sensor |
| 2 | Electronic analyzer module with sensor cell |
| 3 | Temperature sensor |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| PWM | Ethanol content and temperature signal |
| 5 V | 5 Volts, supply voltage |
| Kl. 31 | Ground connection (Terminal 31) |
