Activation and setpoint values
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
Vehicle voltage is supplied to the engine control. The engine control contains a DC/DC converter that steps up the voltage required for activation of the injector. The injector is activated by the engine control on the ground side.

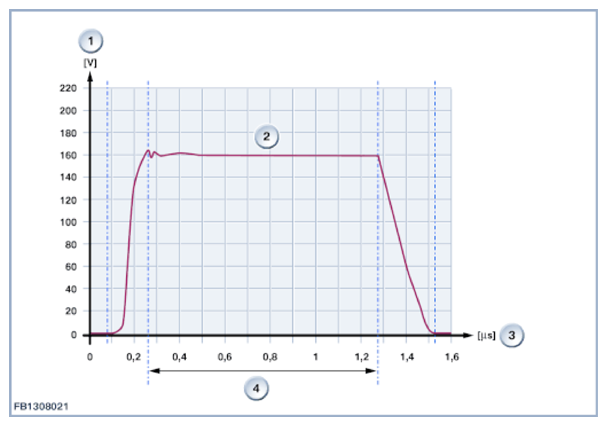

| Index | Explanation |
|---|---|
| 1 | High voltage |
| 2 | Injection signal |
| 3 | Time |
| 4 | Injection period |
Observe the following setpoint values for the injector:
| Size | Value |
|---|---|
| Maximum supply voltage | 190 Volts |
| System pressure | 5 to 20 MPa |
| Opening period, closing period | 100 to 200 μs |
| Dynamic flow at 0.4 ms | 14.5 mg/stroke |
| Temperature range | -30 °C to 140 °C |
