Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

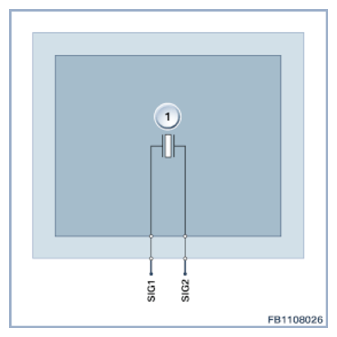

The signal is converted by a Piezo-ceramic disc. Pressure forces within the ceramic lead to a load shift that causes a voltage. This voltage is picked up by contact discs.
Courtesy of BMW OF NORTH AMERICA, INC.
| Index |
Explanation |
| 1 |
Knock sensor |
PIN REFERENCE
| Pin |
Explanation |
| SIG1 |
Differential signal 1 |
| SIG2 |
Differential signal 2 |
