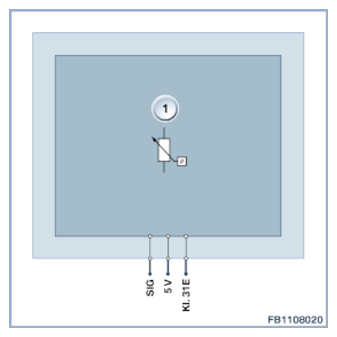

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The rail pressure sensor is connected via a 3-pin plug connection.
The sensor is supplied with 5 Volts by the engine control.
| Item | Explanation |
|---|---|
| 1 | Rail pressure sensor |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| SIG | Rail pressure signal |
| 5 V | 5 Volts, supply voltage |
| Terminal 31E | Terminal 31, electronics earth (ground) |
