Functional description

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The electrical turbocharger coolant pump works according to the principle of a centrifugal pump. The engine control directly activates the turbocharger coolant pump (not via local interconnect network bus like the coolant pump for the charge air cooler).

The following graphic shows an example of an electrical turbocharger coolant pump.

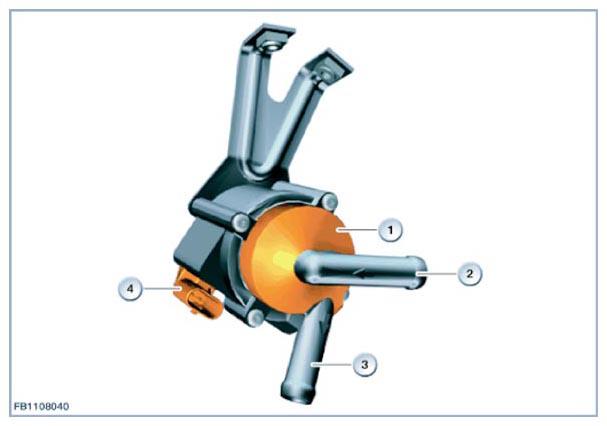

Fig 1: Identifying Turbocharger Coolant Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Turbocharger coolant pump
2	Connection of the exhaust turbochargers
3	Connection to the engine cooling circuit
4	three-pin plug connection

Activation of the electrical turbocharger coolant pump takes into account the following variables:

Coolant temperature at engine outlet
Engine oil temperature
Injected fuel quantity

The injected fuel quantity is used to calculate the heat contribution to the engine. The function is similar to that of heat management in the 6-cylinder engines. The after-run of the turbocharger coolant pump can last up to 30 minutes. To improve the cooling effect, the electric fan is also switched on. The electric fan runs down for a maximum of 11 minutes.
