System overview
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

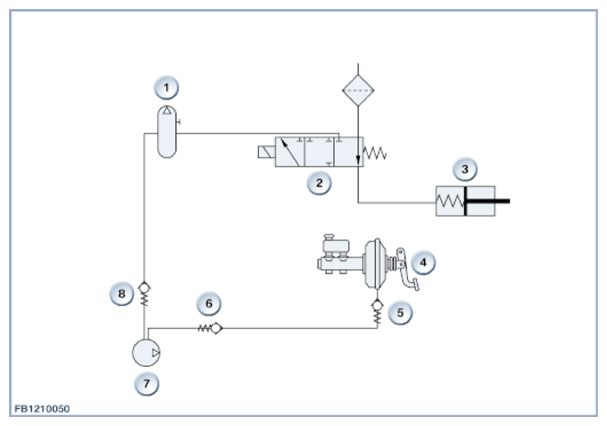

The following illustration shows the system overview without the model-specific exhaust flap.
Courtesy of BMW OF NORTH AMERICA, INC.
| Item |
Explanation |
| 1 |
Vacuum reservoir |
| 2 |
Pressure converter |
| 3 |
Vacuum unit, wastegate valve |
| 4 |
Brake servo |
| 5 |
Non-return valve |
| 6 |
Non-return valve |
| 7 |
Vacuum pump |
| 8 |
Non-return valve |
