00 00... Changing differential oil

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Change oil with rear axle differential at normal operating temperature.

Final drive oil, refer to OPERATING FLUIDS .

Unscrew drain plug (2), clean and reinstall.

Unscrew the filler screw plug (1).

Pour in differential oil until overflowing. Install filler screw plug (1).

Installation:

Tightening Torque, refer to MAINTENANCE AND GENERAL INFORMATION - TIGHTENING TORQUES .

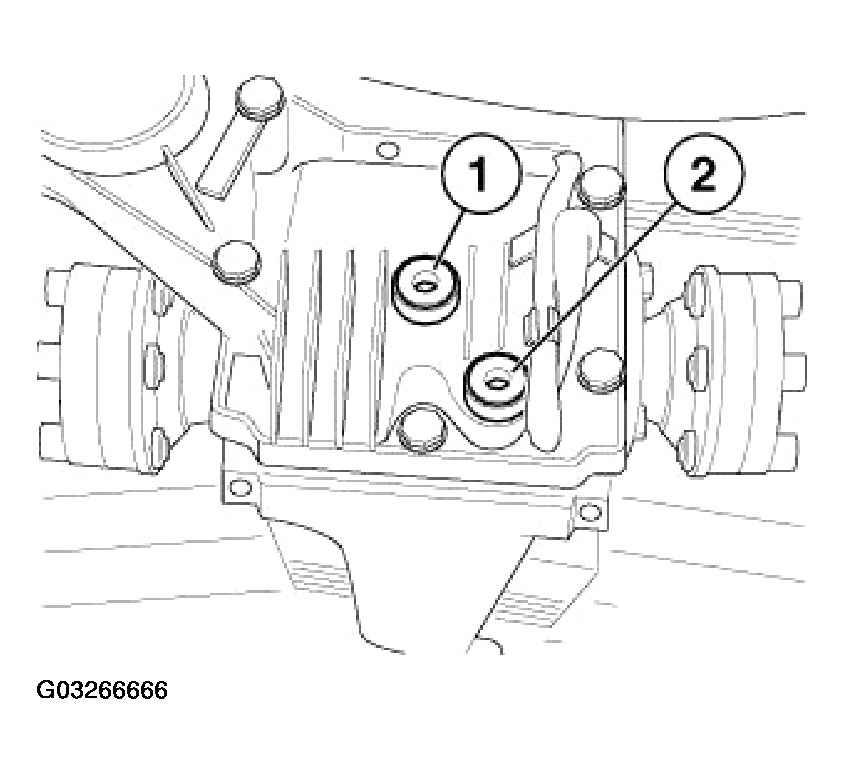

Fig 1: Removing Drain Plug
G03266666Courtesy of BMW OF NORTH AMERICA, INC.
