37 00 ... Checking Air Spring Struts/Air Springs For Damage

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a vehicle has been driven with depressurized air spring struts/air springs, the air spring struts/air springs must be replaced.

Lift vehicle.

Air spring strut of air spring is OK:

when the gaiter cannot be compressed by hand
when there is no discernible visible damage
when the rolling fold is uniform

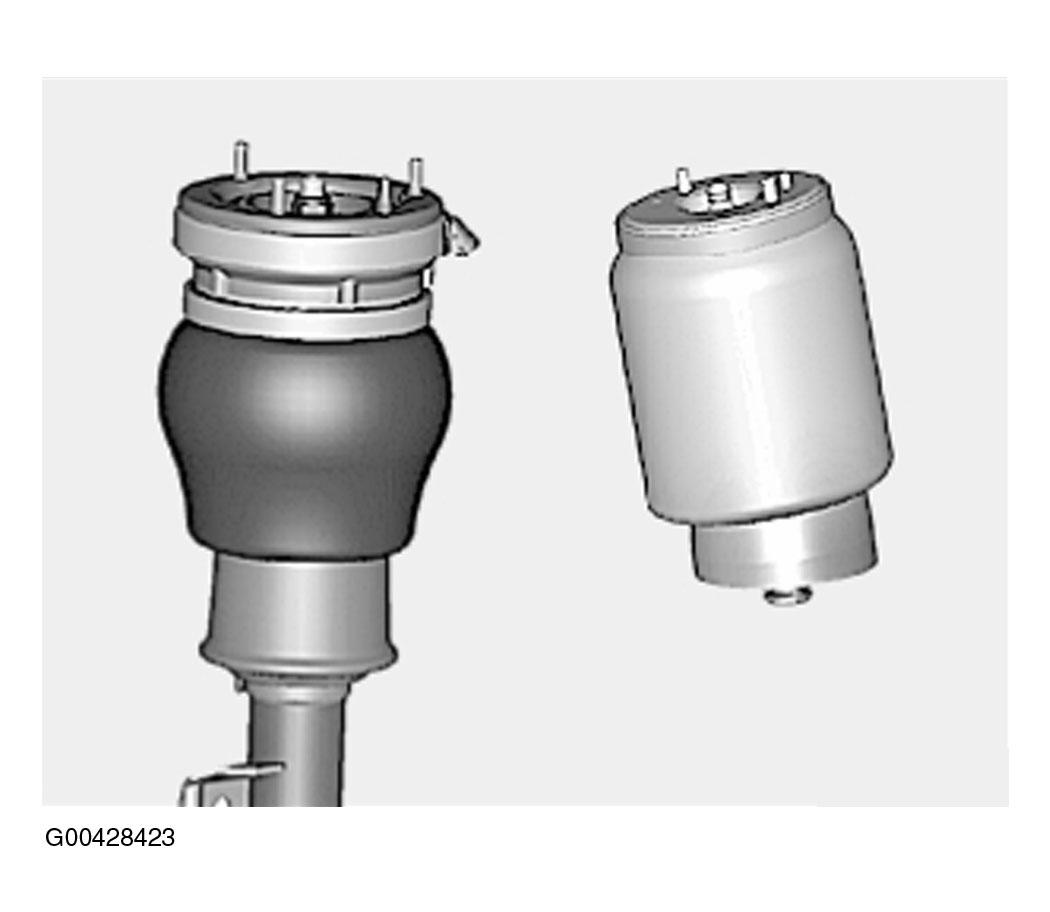

Fig 1: View Of Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If one of the above-mentioned points fails the test, then the air spring strut or air spring must be replaced. Refer to 37 11 001 REPLACING FRONT LEFT OR RIGHT AIR SPRING STRUT or 37 12 155 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT AIR SPRING .
