61 13... Crimping annular contacts

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

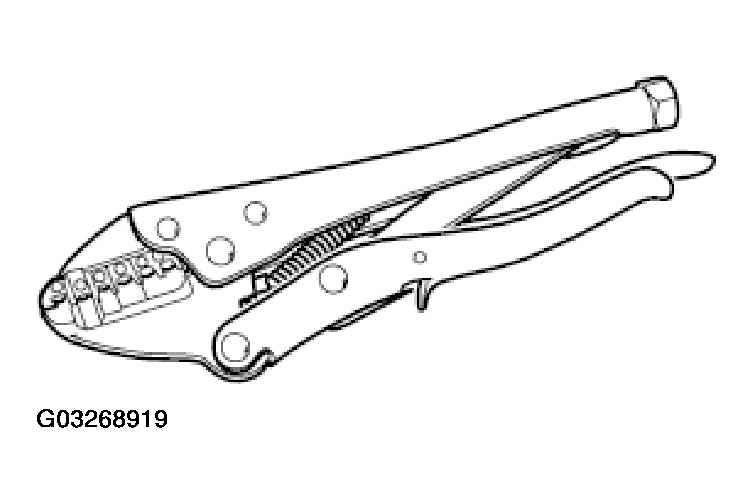

CrimpacII crimping pliers from repair kit 1 are used to crimp annular contacts.

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

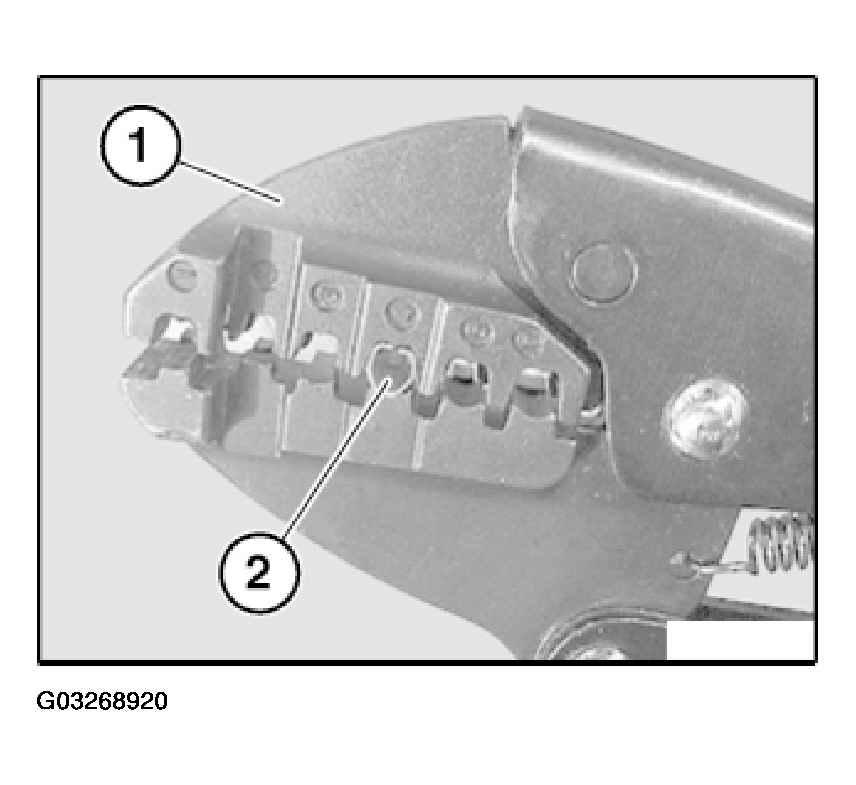

Open crimping pliers (1).

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.
Insert annular contact (2) in crimping pliers (1).

Close crimping pliers (1) gently and keep closed.

Fig 2: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables.

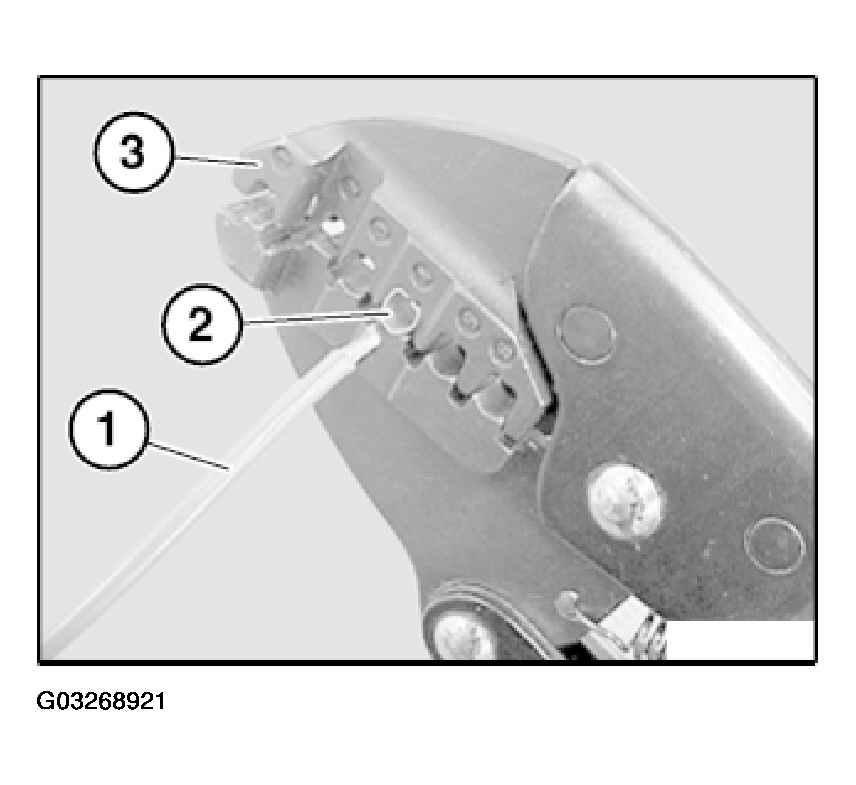

Feed stripped cable (1) into annular contact (2) completely.

Close crimping pliers (3) fully.

Open crimping pliers (3) and remove cable (2).

NOTE: Check contact for correct crimping.

Fig 3: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
