61 13... DME master relay connector

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Unlock locking flap (1) of corresponding cable.

Fig 1: Removing Unlock Locking Flap

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.

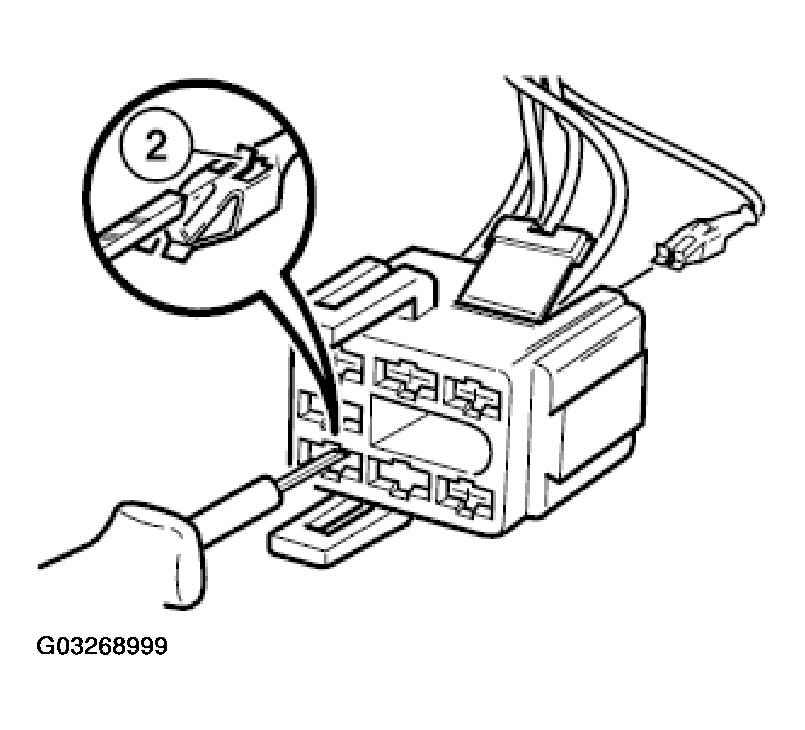

Fig 2: Pressing Back Arrester Hook Of Appropriate Contact

Courtesy of BMW OF NORTH AMERICA, INC.
