61 13 Special Tools For Wiring Harness Repairs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see Special tools required: .

Special Tools Required:

12 1 080
61 0 200
61 0 210
61 0 220
61 0 230
61 0 300
61 0 400
61 1 190
61 4 320
61 9 041
61 9 044

Release and press-out tool:

Special tool 61 0 300
Special tool 61 0 400 (MINI N12/N14)

Handling:

Opening plug housings and removing contacts of different plug systems

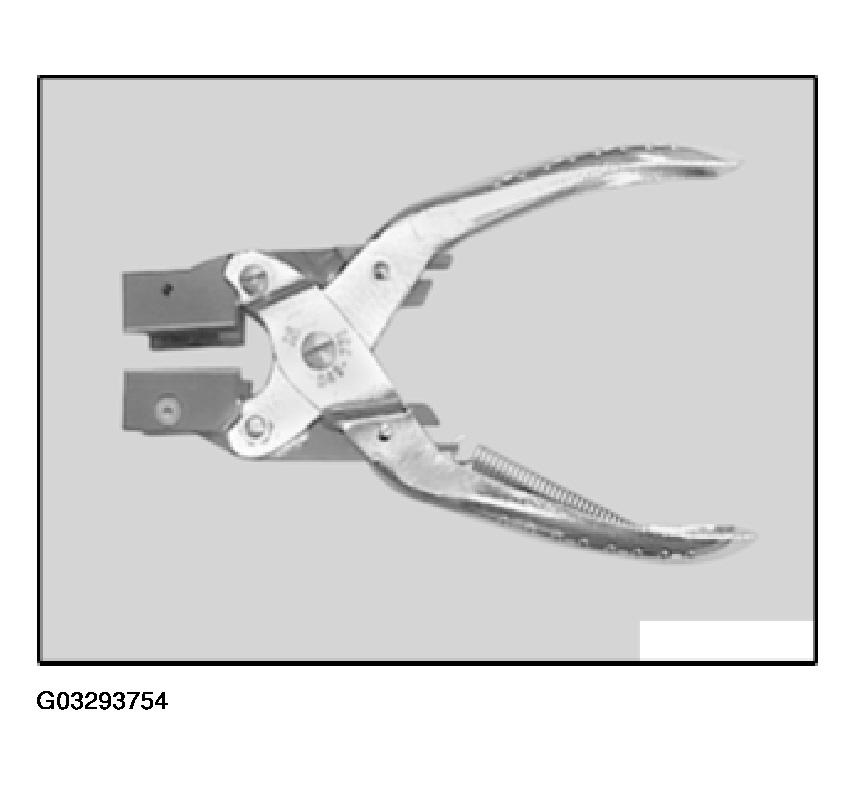

Fig 1: Special Tool (61 0 300) / (61 0 400)

Courtesy of BMW OF NORTH AMERICA, INC.

Cutting to length and stripping insulation from cables:

Handling:

Cutting to length and stripping insulation from cables

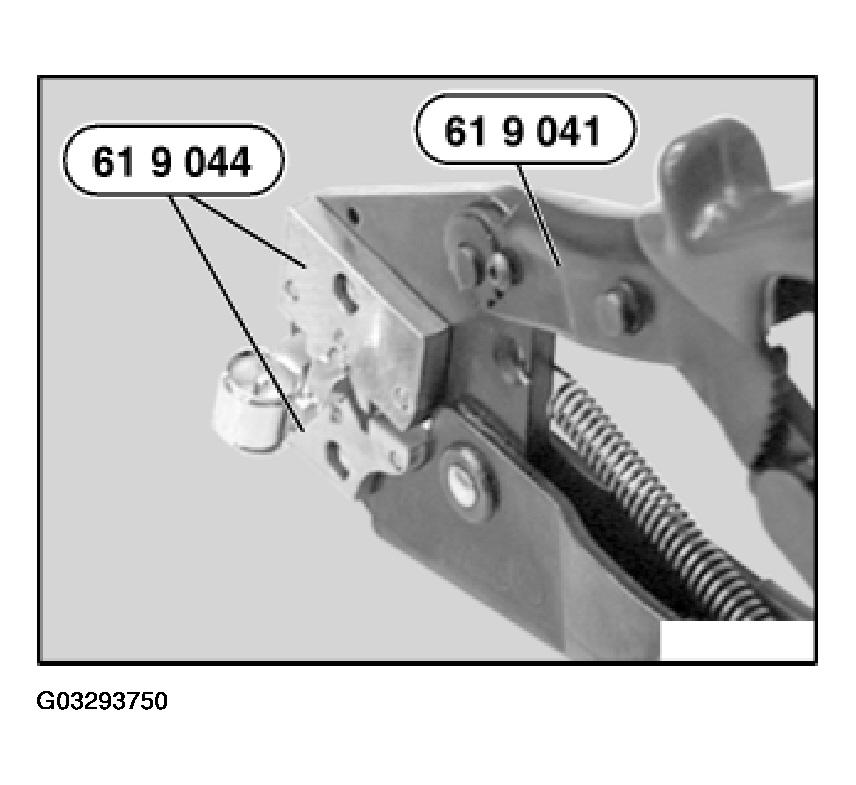

Fig 2: Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (small contacts):

Special tool 61 4 320
1. Tool without crimping head
2. Crimping head (stripping insulation and cutting fibre-optic cables to length)
3. Crimping head (crimping fibre-optic cable contacts)
4. Crimping head (crimping MQS contacts)
5. Crimping head (crimping MPQ contacts)
6. Replacement blade (face-cutting fibre-optic cables)
7. Replacement blade with tool (insulation stripping unit)
8. Universal crimping head
