84 21 526 Removing And Installing/Replacing Compensator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

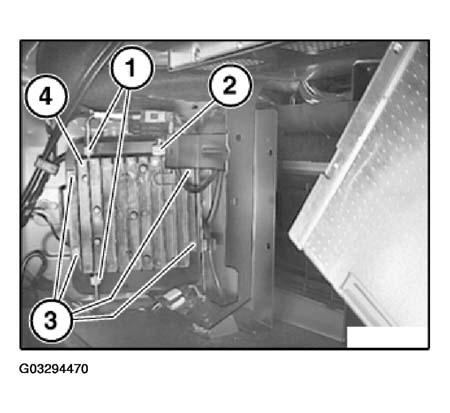

Release knurled nuts and disconnect antenna connector (1).
Unfasten plug connection (2) and disconnect.
Release screws (3) and remove compensator (4).
