61 13... Crimping annular contacts

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

CrimpacII crimping pliers from repair kit 1 are used to crimp annular contacts.

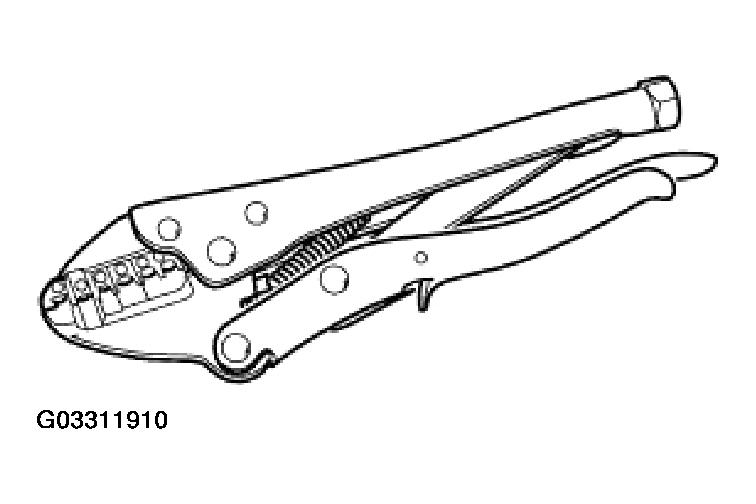

Fig 1: View Of Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

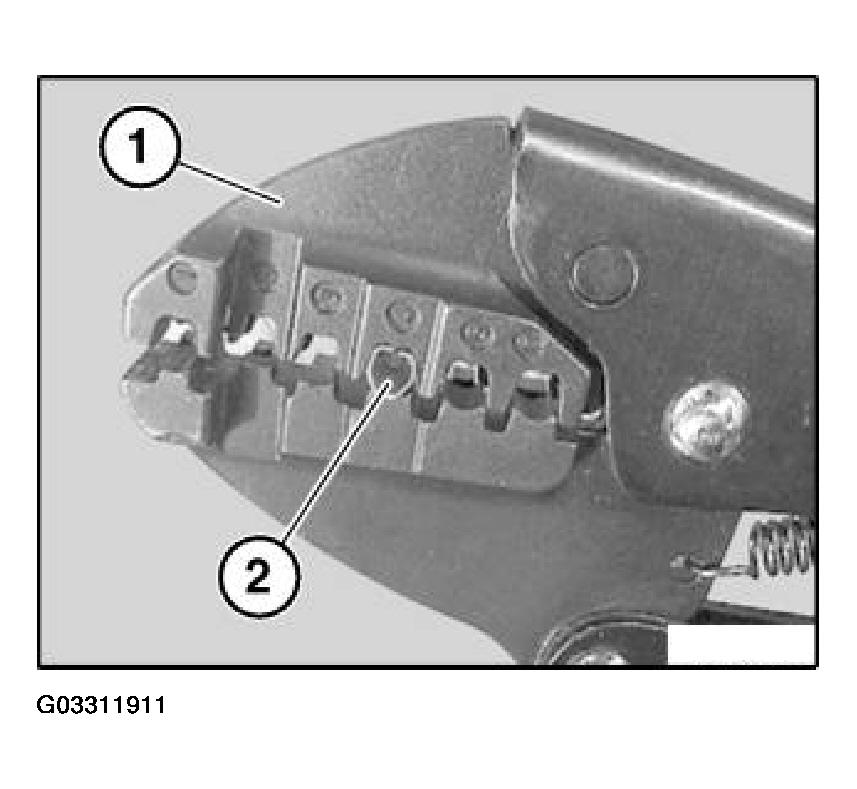

Fig 2: Placing Contact In Nest

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.

Insert annular contact (2) in crimping pliers (1).

Close crimping pliers (1) gently and keep closed.

NOTE: Follow procedure for cutting and stripping insulation from cables.

Feed stripped cable (1) into annular contact (2) completely. Close crimping pliers (3) fully.

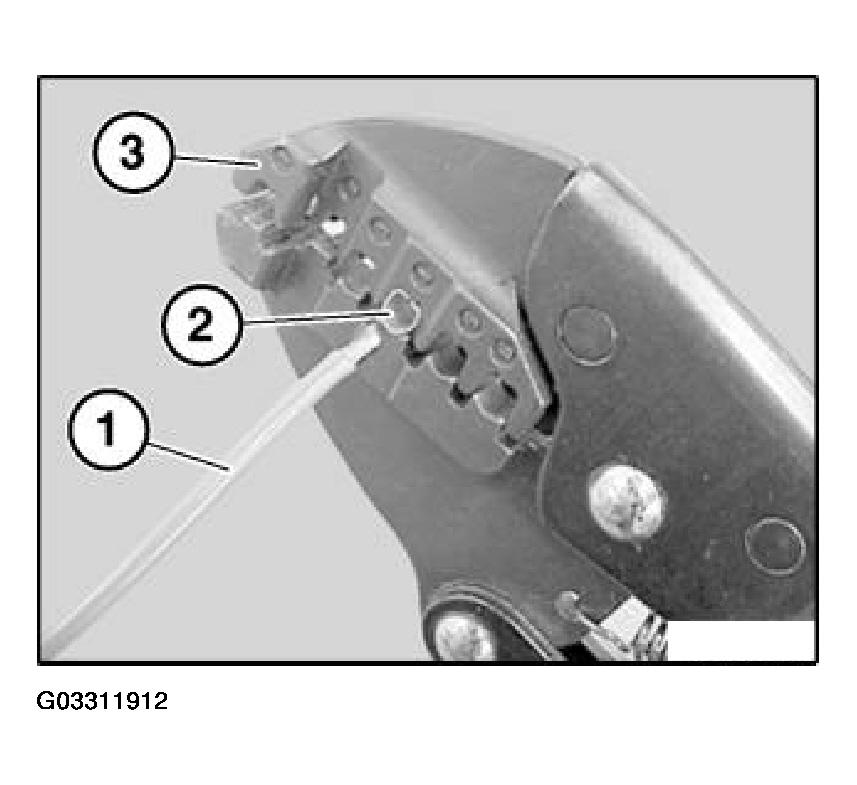

Fig 3: Crimping Annular Contacts

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (3) and remove cable (2).

NOTE: Check contact for correct crimping.
