13 62 530 Replacing Transmission Fluid Temperature Sensor (SMG)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: After completing work: Check transmission fluid level.

CAUTION: Use only the approved gear oil in this manual transmission.

Failure to comply with this requirement will result in serious damage to the transmission.

Remove rear underbody protection.

Detach cable plug (1) on transmission fluid temperature sensor.

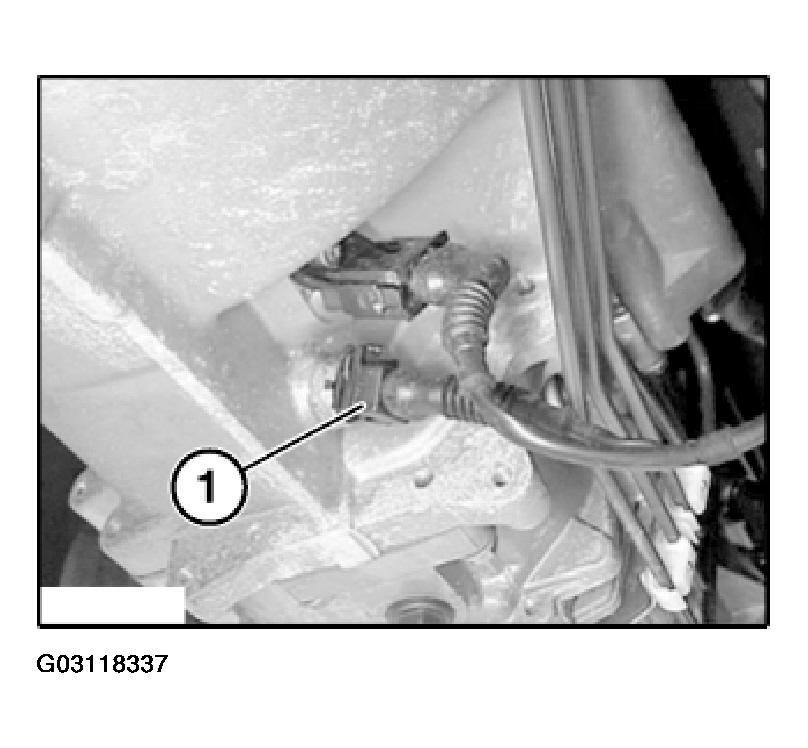

Fig 1: Locating Cable Plug On Transmission Fluid Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release transmission temperature sensor (2).

Tightening torque, refer to 13 62 2AZ in FUEL SYSTEM - TIGHTENING TORQUES .

Remove transmission fluid temperature sensor (2).

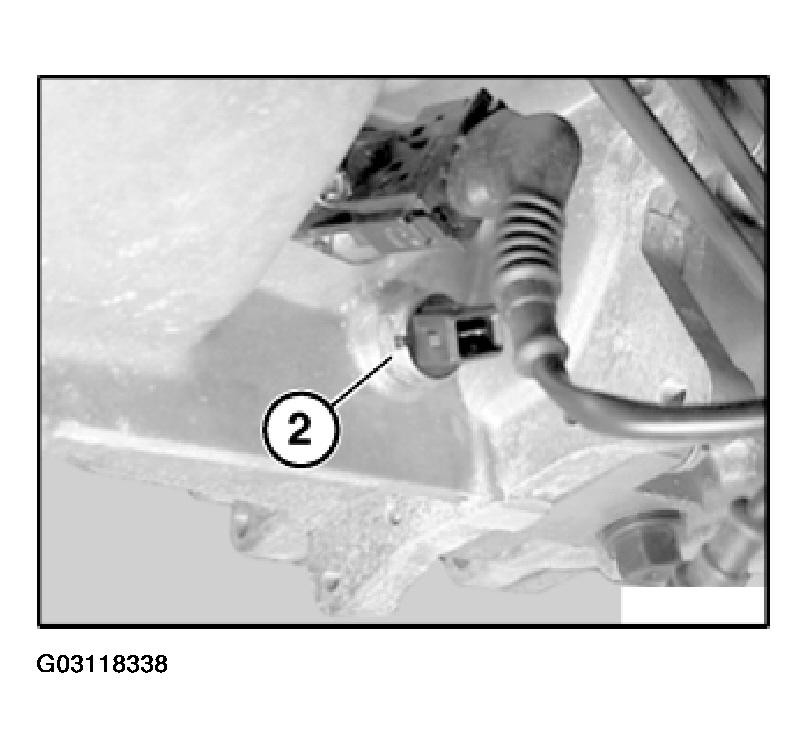

Fig 2: Removing Transmission Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
