61 13 ... Crimping annular contacts

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Crimpacll crimping pliers from repair kit 1 are used to crimp annular contacts.

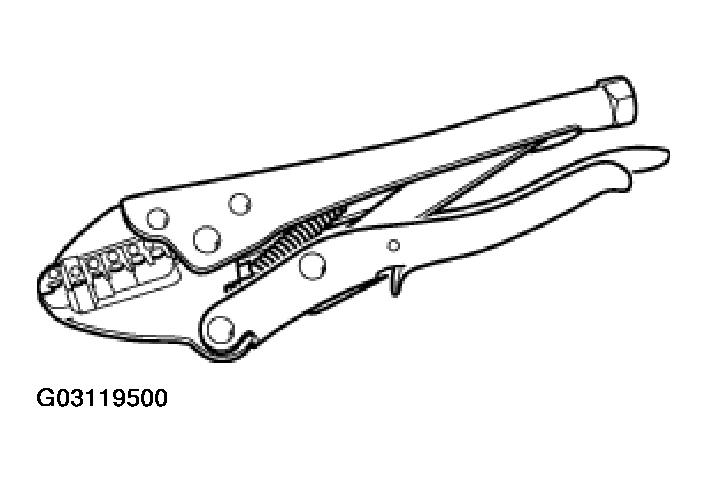

Fig 1: Identifying Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

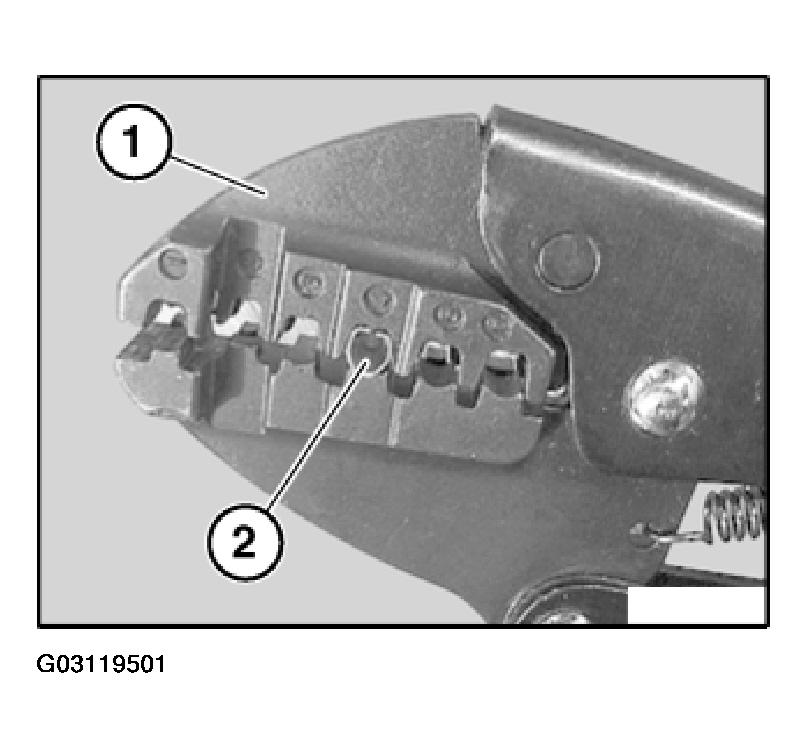

Fig 2: Placing Contact In Designated Nest

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.

Insert annular contact (2) in crimping pliers (1).

Close crimping pliers (1) gently and keep closed.

NOTE: Follow procedure for cutting and stripping insulation from cables.

Feed stripped cable (1) into annular contact (2) completely.

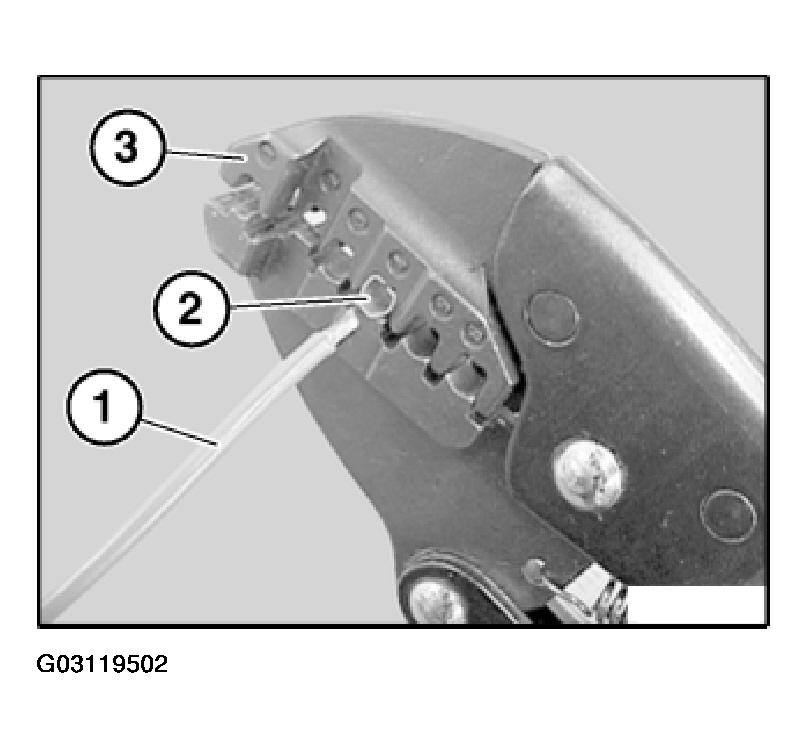

Fig 3: Crimping Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Close crimping pliers (3) fully.

Open crimping pliers (3) and remove cable (2).

NOTE: Check contact for correct crimping.
