61 13... Retaining bracket

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Pull relevant fuse out of fuse block (1).

NOTE: Mark positions when removing fuses.

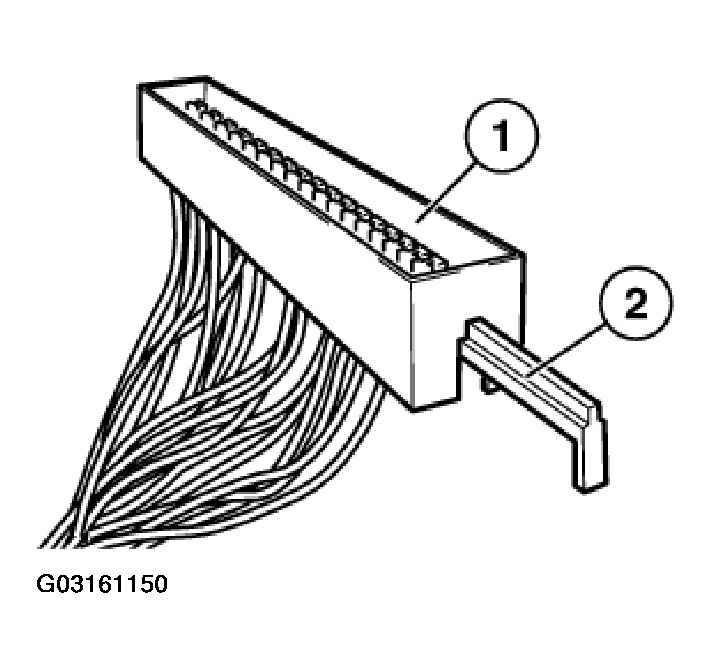

Pull locking slide (2) out of fuse block (1) as far as it will go.

Fig 1: Pulling Locking Slide Out Of Fuse Block

Courtesy of BMW OF NORTH AMERICA, INC.

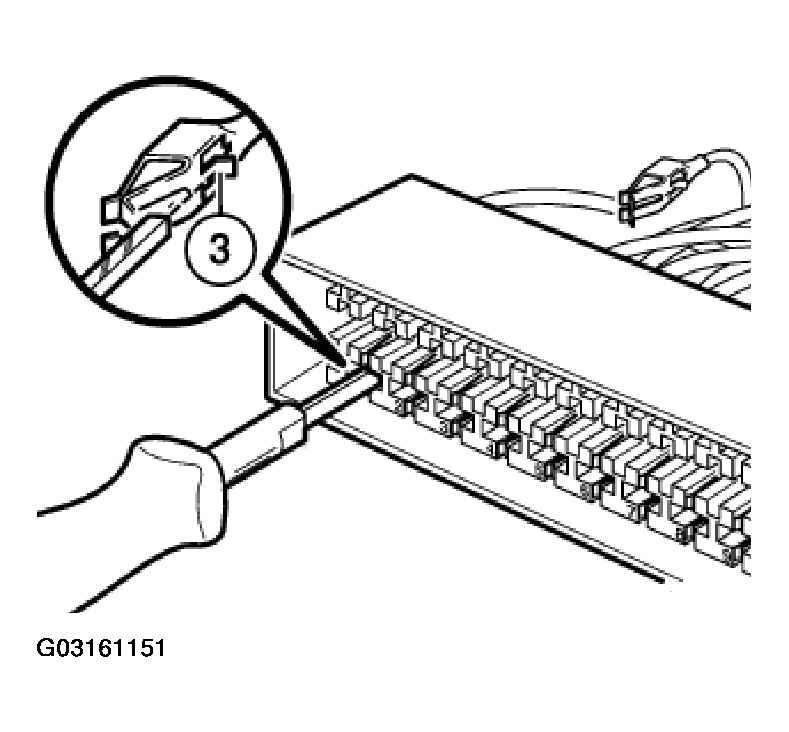

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (3) of appropriate contact and pull out cable.

Fig 2: Removing Appropriate Contact From Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
