13 00 002 Checking function of Digital Engine Electronics (DME)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

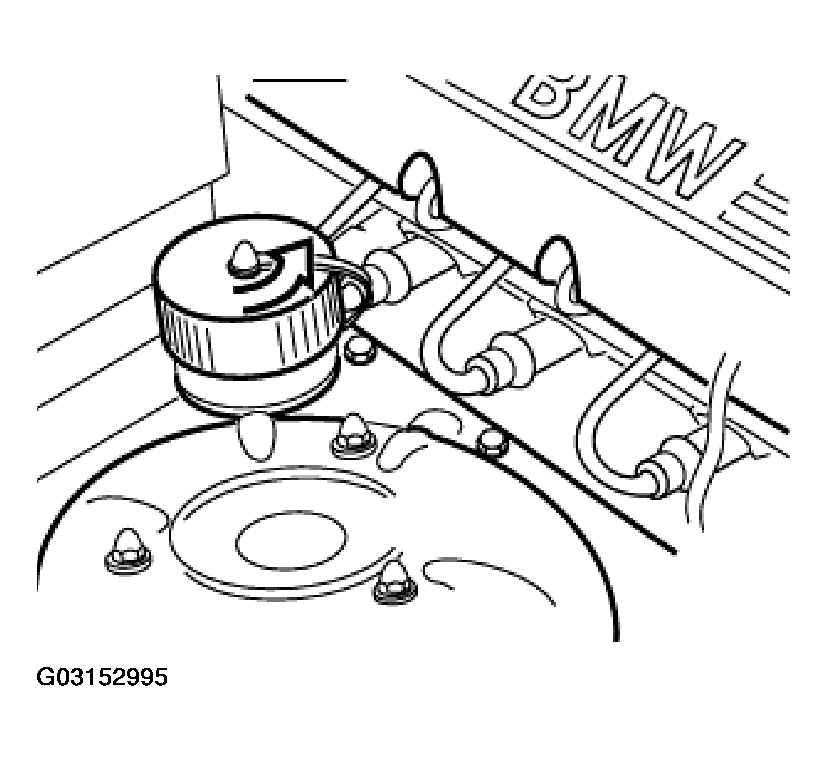

Diagnostic connector in engine compartment:

Connect up MoDiC or BMW DIS.

Interrogate DME fault memory.

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

Fig 1: Connecting MoDiC or BMW DIS

Courtesy of BMW OF NORTH AMERICA, INC.

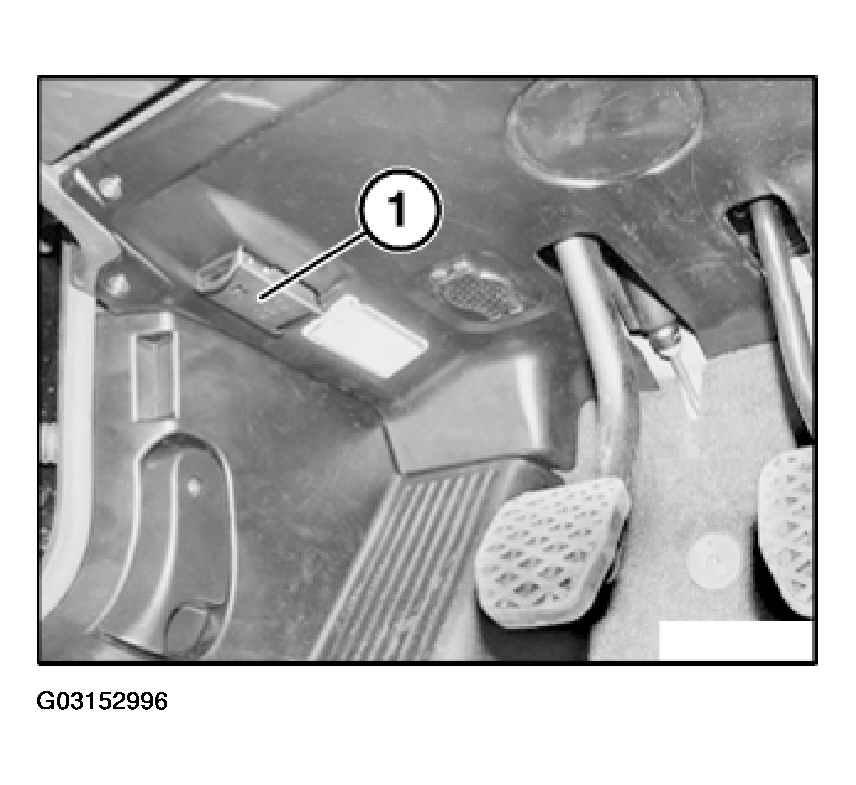

OBD socket (1) in driver's footwell:

Same procedure as above.

Fig 2: Identifying OBD Socket

Courtesy of BMW OF NORTH AMERICA, INC.
