61 13 .. Unlocking and disconnecting different plug connections

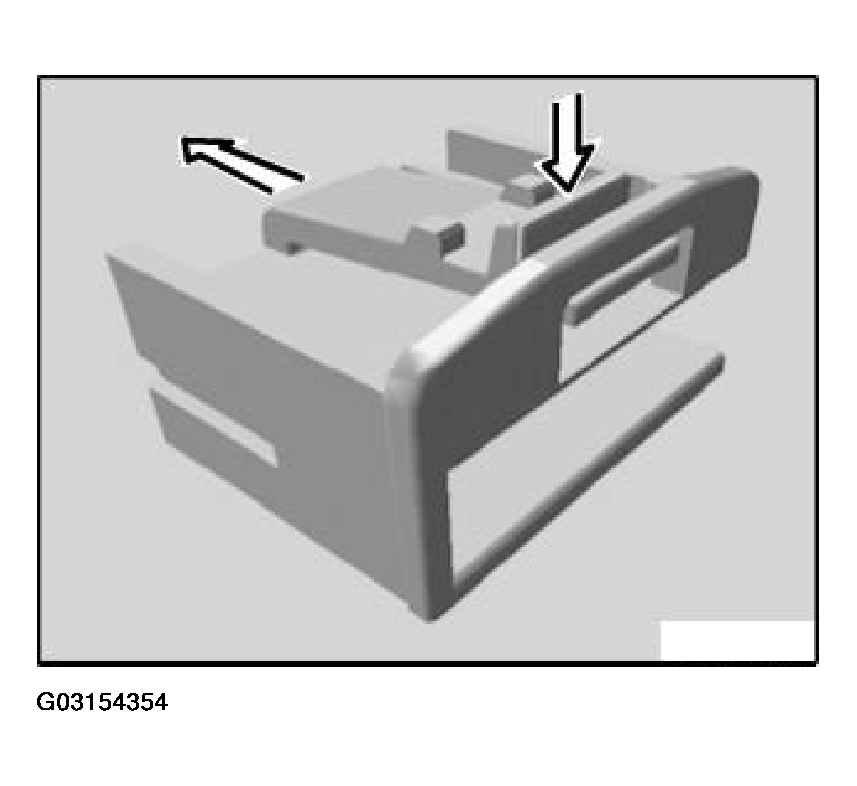

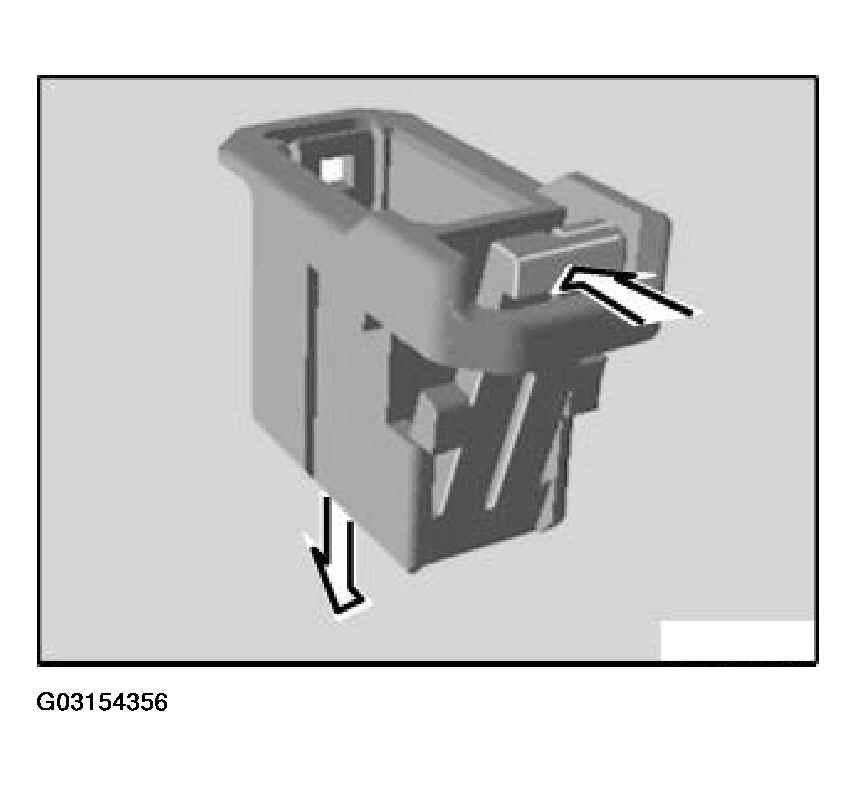

Press lock and open clip in direction of arrow. Disconnect plug connection.

Fig 1: Disconnecting Plug Connection (1 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

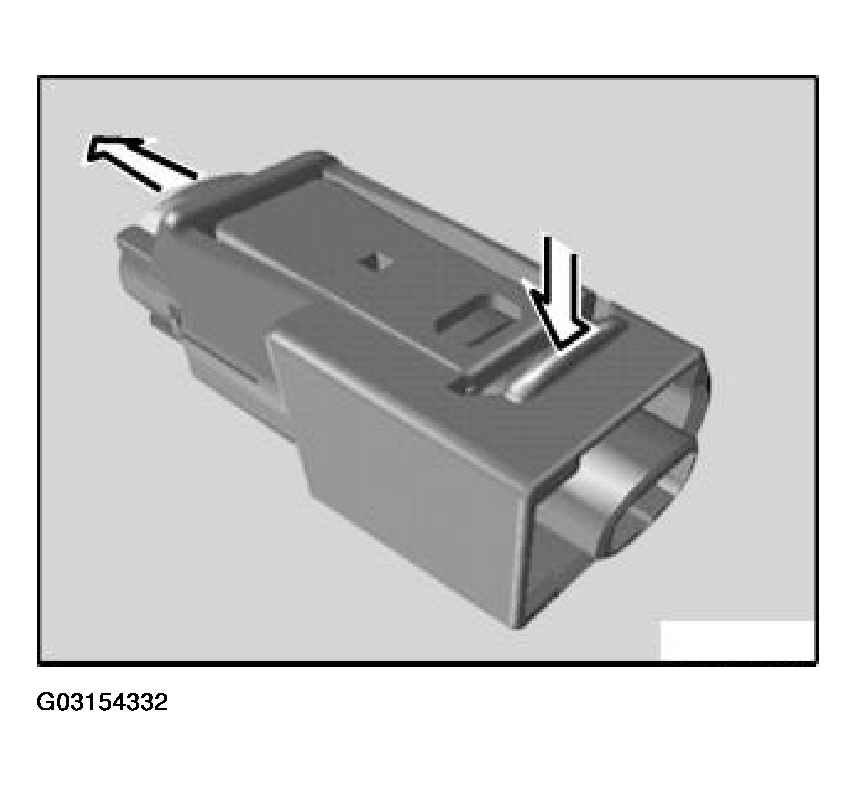

Press lock and open clip in direction of arrow. Disconnect plug connection.

Fig 2: Disconnecting Plug Connection (2 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

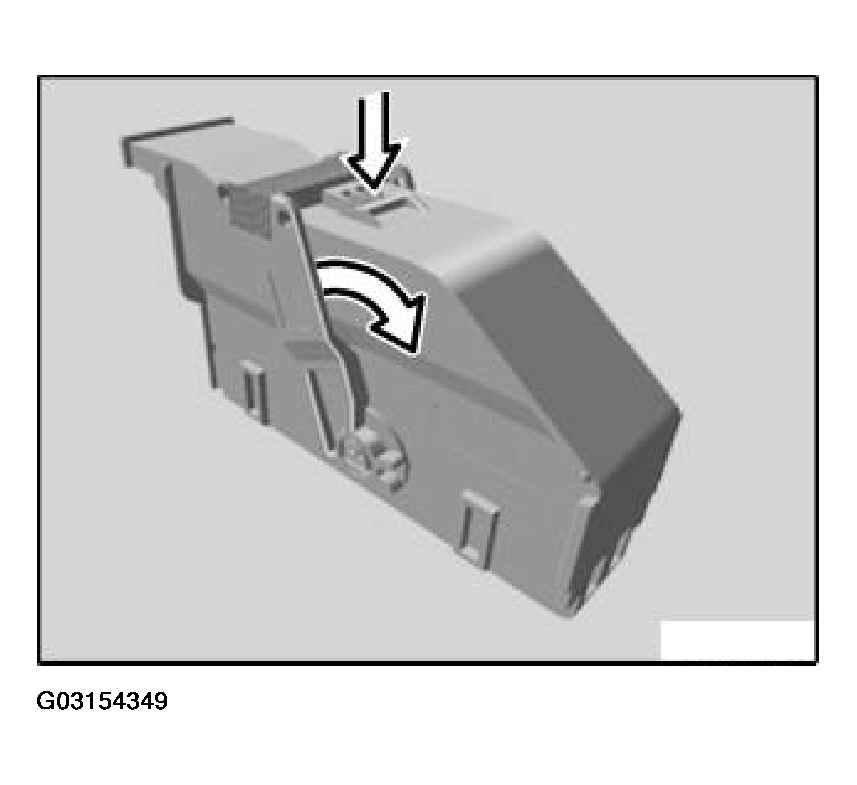

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection (3 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

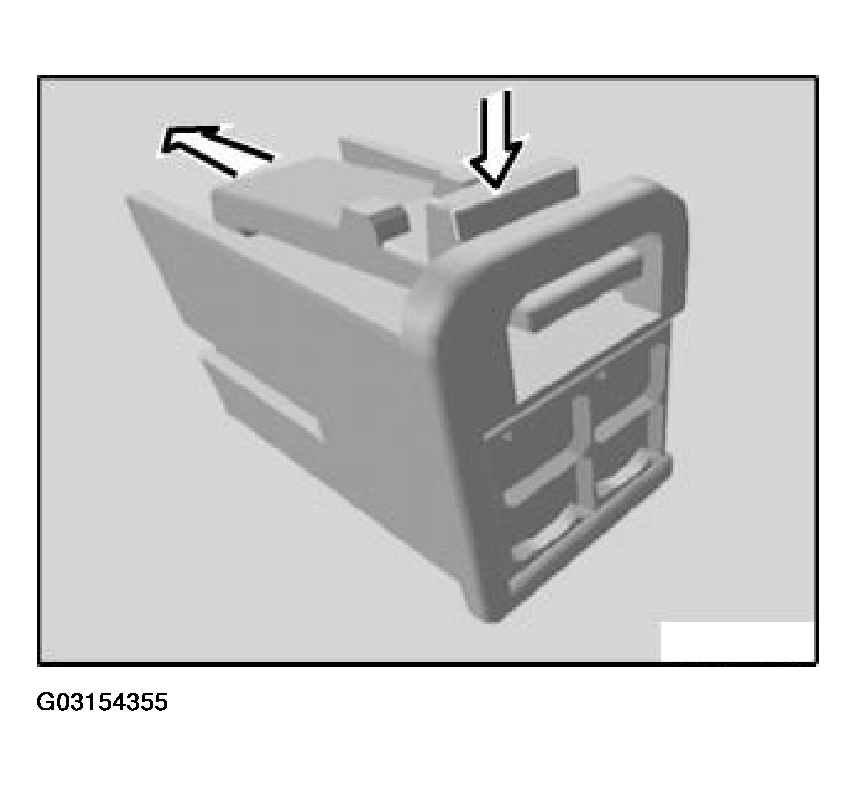

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Disconnecting Plug Connection (4 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

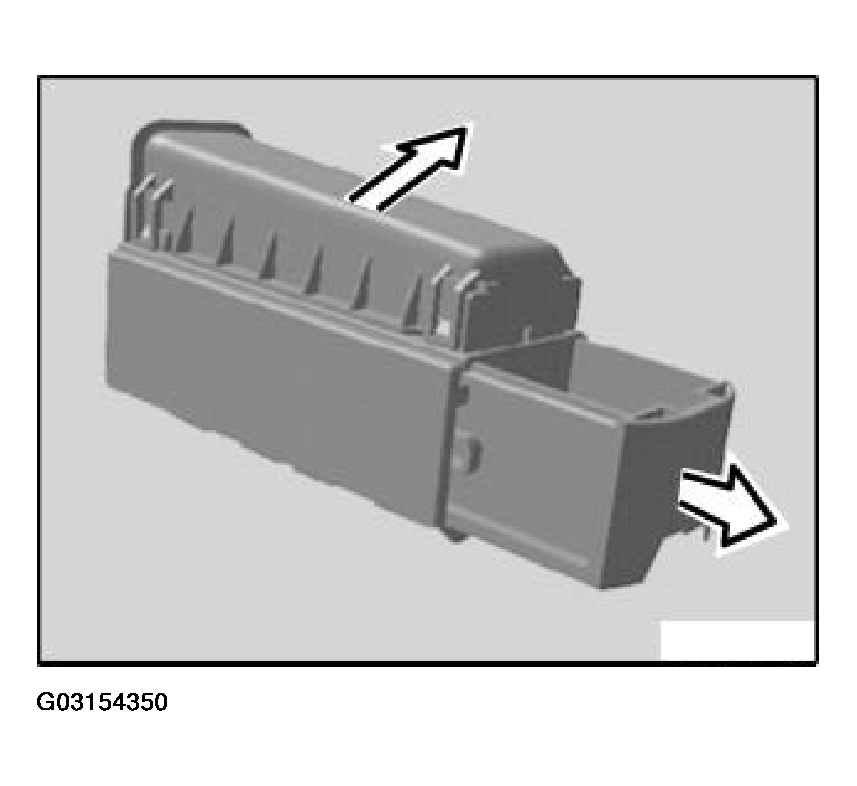

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Disconnecting Plug Connection (5 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

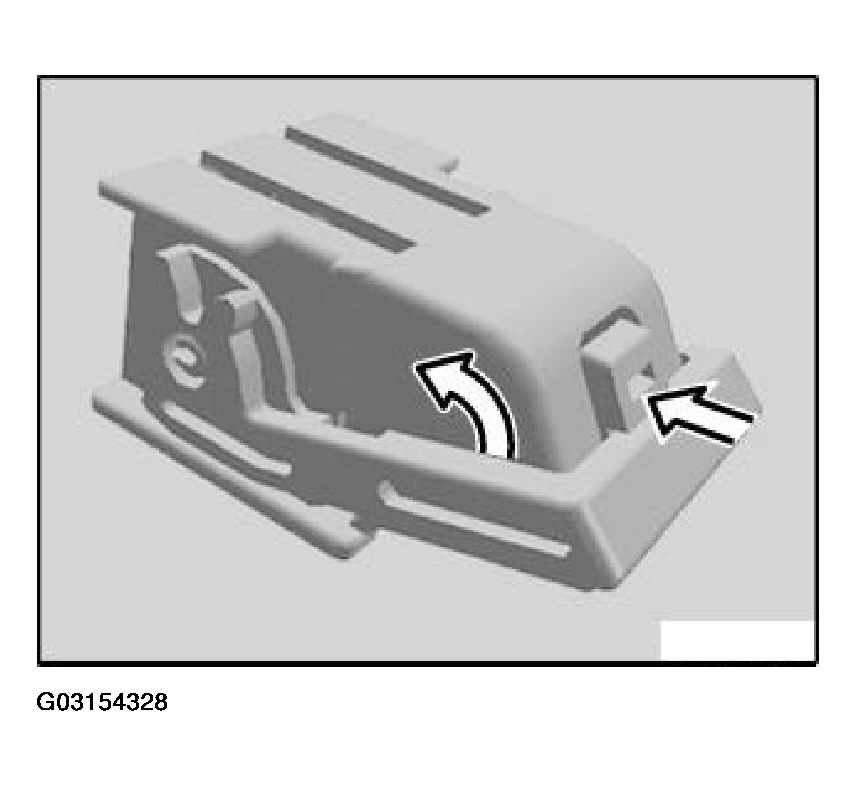

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Disconnecting Plug Connection (6 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

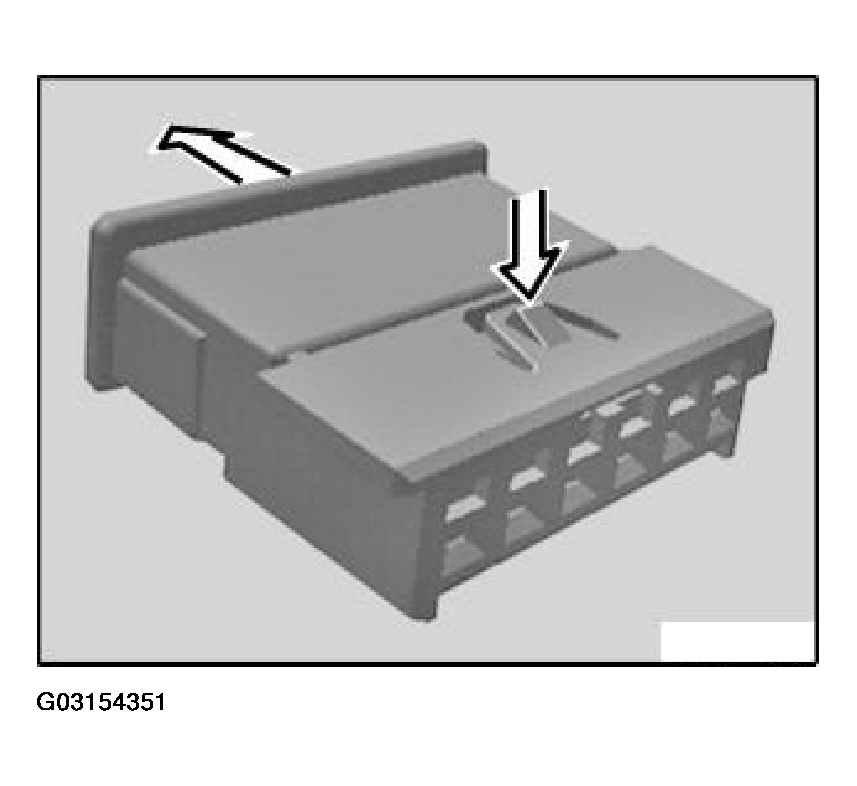

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Disconnecting Plug Connection (7 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

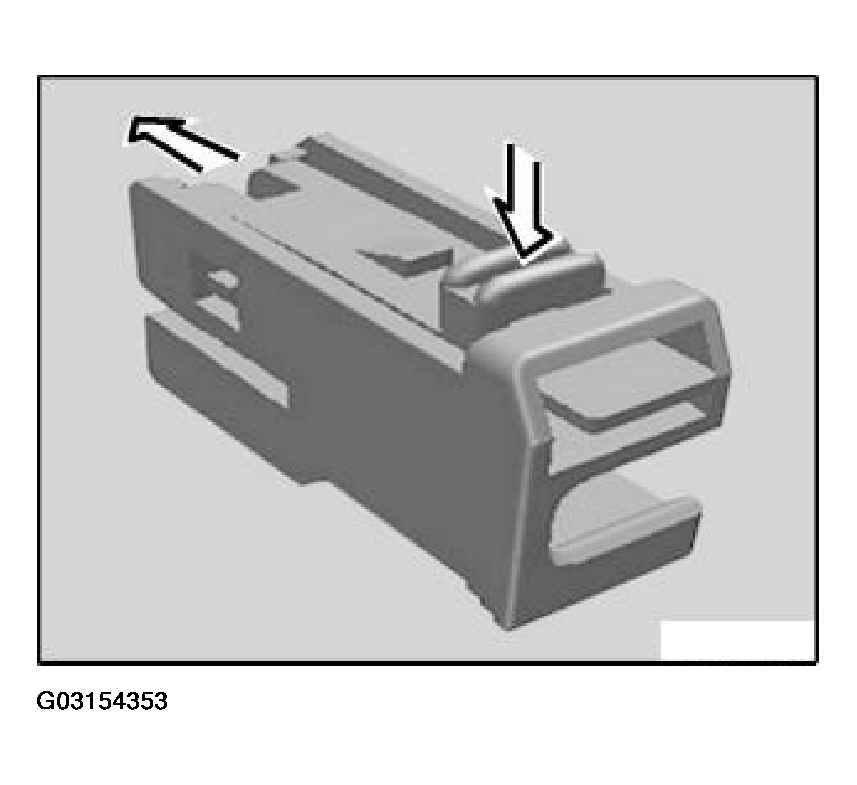

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Disconnecting Plug Connection (8 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnecting Plug Connection (9 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and open clip in direction of arrow. Disconnect plug connection.

Fig 1: Unlocking And Disconnecting Different Plug Connections (1 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and open clip in direction of arrow. Disconnect plug connection.

Fig 2: Unlocking And Disconnecting Different Plug Connections (2 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Unlocking And Disconnecting Different Plug Connections (3 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Unlocking And Disconnecting Different Plug Connections (4 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Unlocking And Disconnecting Different Plug Connections (5 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Unlocking And Disconnecting Different Plug Connections (6 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Unlocking And Disconnecting Different Plug Connections (7 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Unlocking And Disconnecting Different Plug Connections (8 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Unlocking And Disconnecting Different Plug Connections (9 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.
