Pull relevant fuse out of fuse block (1).

NOTE: Mark positions when removing fuses.

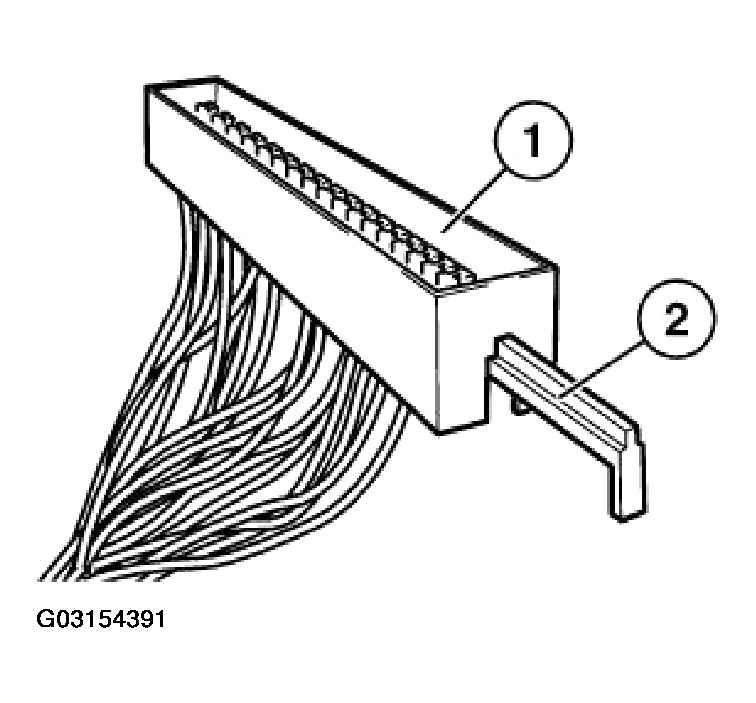

Pull locking slide (2) out of fuse block (1) as far as it will go.

Fig 1: Pulling Locking Slide Out Of Fuse Block

Courtesy of BMW OF NORTH AMERICA, INC.

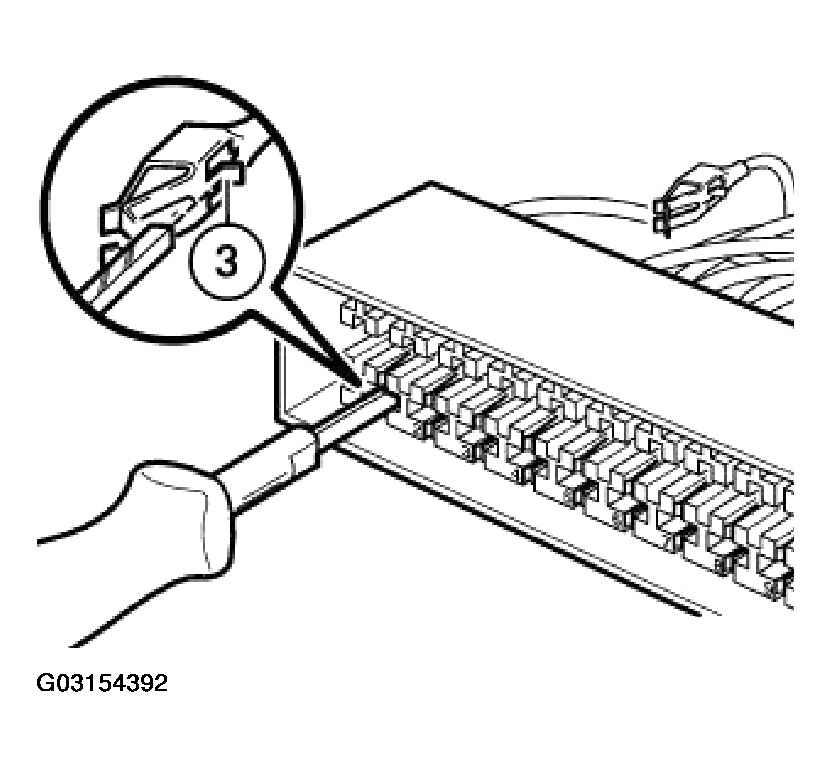

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (3) of appropriate contact and pull out cable.

Fig 2: Removing Cable

Courtesy of BMW OF NORTH AMERICA, INC.
