61 13... DME master relay connector

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

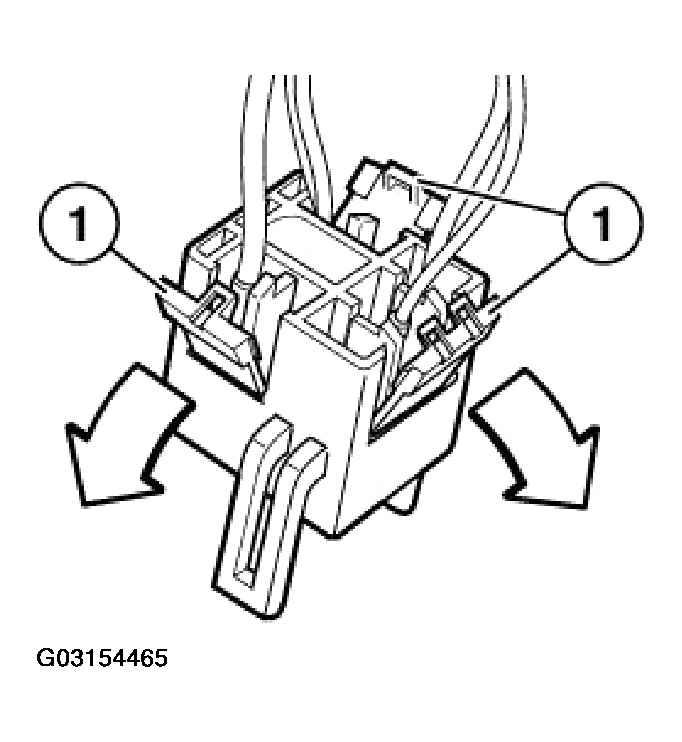

Unlock locking flap (1) of corresponding cable.

Fig 1: Unlocking Locking Flap

Courtesy of BMW OF NORTH AMERICA, INC.

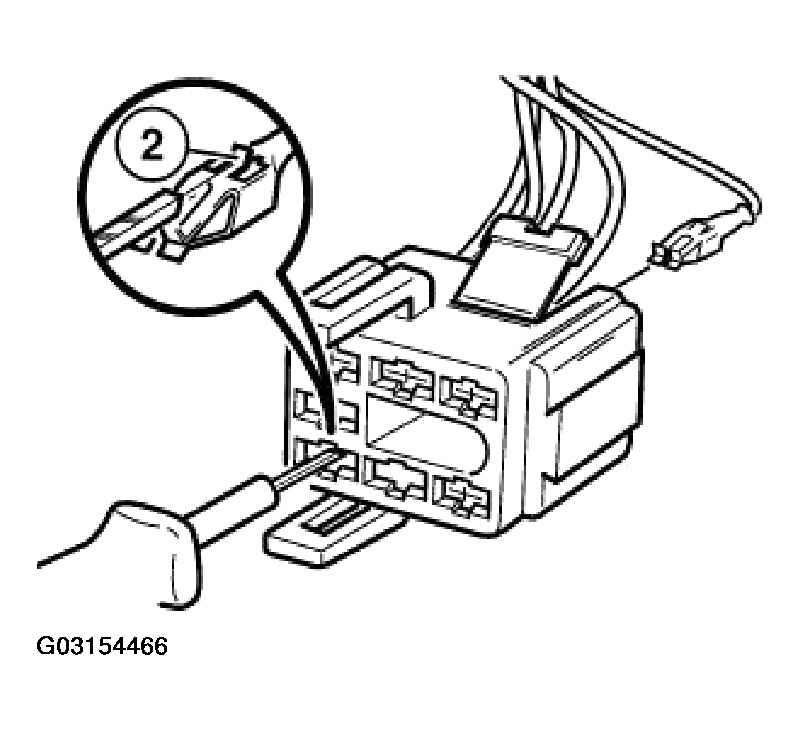

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.

Fig 2: Removing Cable

Courtesy of BMW OF NORTH AMERICA, INC.
