61 71... Procedure for replacing high-pressure lines

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

When replacing the H.P. lines, you must carry out a venting procedure after filling the fluid reservoir.

During the venting operation, a large amount of washer fluid may emerge from the spray nozzles. Have cleaning cloths at hand.

Call up service function "Vent headlight cleaning system" by way of DIS or MoDiC (refer to Diagnosis and Information System). In this case, the washer pump is activated for approx. 6 seconds and the H.P. lines are vented.

Top up washer fluid.

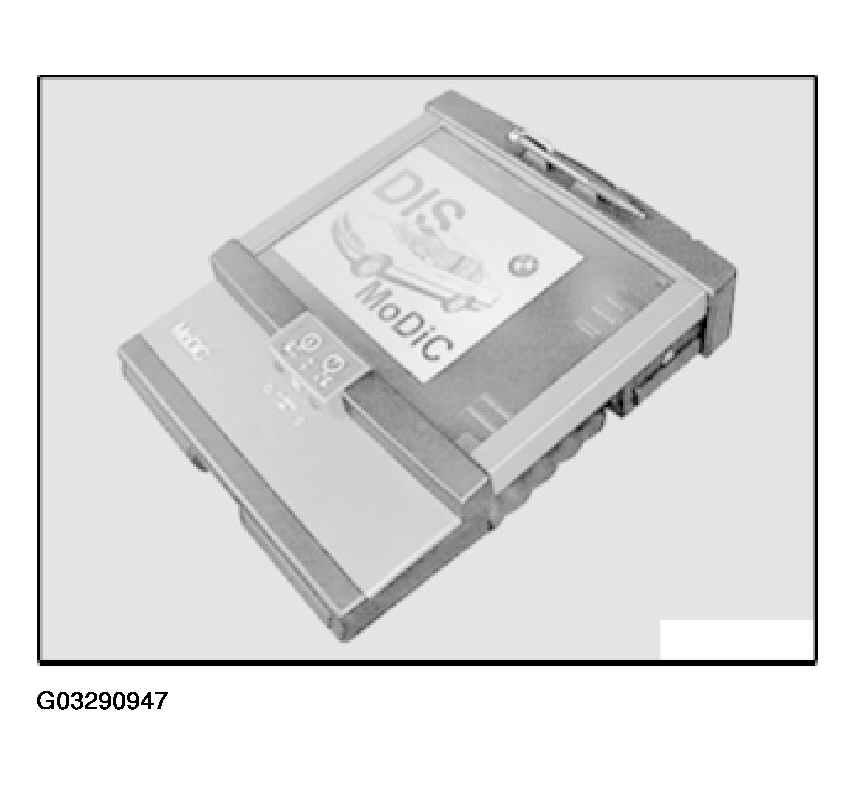

Fig 1: Identifying DIS Or Modic
G03290947Courtesy of BMW OF NORTH AMERICA, INC.
