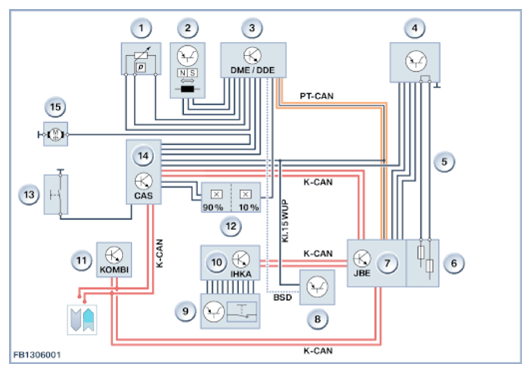

| 1 |
Brake vacuum sensor |
| 2 |
Zero-gear sensor |
| 3 |
Engine control (DME or DDE) |
| 4 |
DC/DC converter |
| 5 |
DC/DC converter inputs and outputs to power distribution box |
| 6 |
Distribution box (junction box) |
| 7 |
Junction Box Electronics (JBE) |
| 8 |
Intelligent battery sensor at battery's negative terminal |
| 9 |
Center console control panel with MSA button |
| 10 |
Integrated automatic heating/air conditioning system (IHKA) |
| 11 |
Instrument panel (KOMBI) |
| 12 |
Clutch switch |
| 13 |
Engine compartment lid contact switch |
| 14 |
Car access system (CAS) |
| 15 |
Starter motor |
