Comparison Images EWS Oscilloscope Measurement - DSC Control Unit

IMPORTANT: The DSC must remained connected during the test-measurement operation.

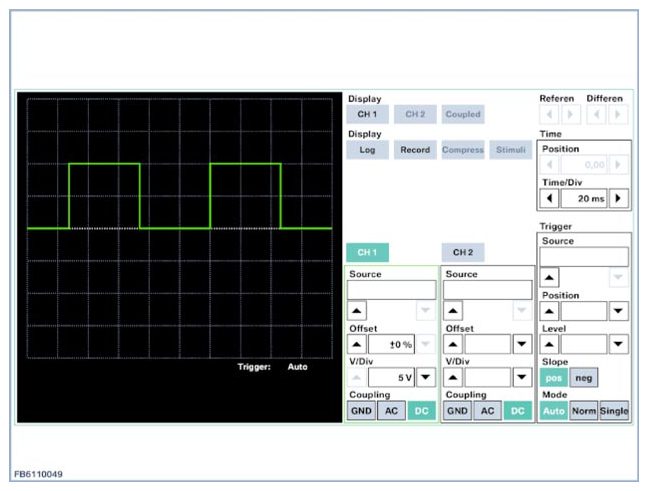

Fig 1: Display - DSC Control Unit Speed Signal Screen (OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The speed signal from the DSC control unit must be a rectangular signal with amplitude Ubat.

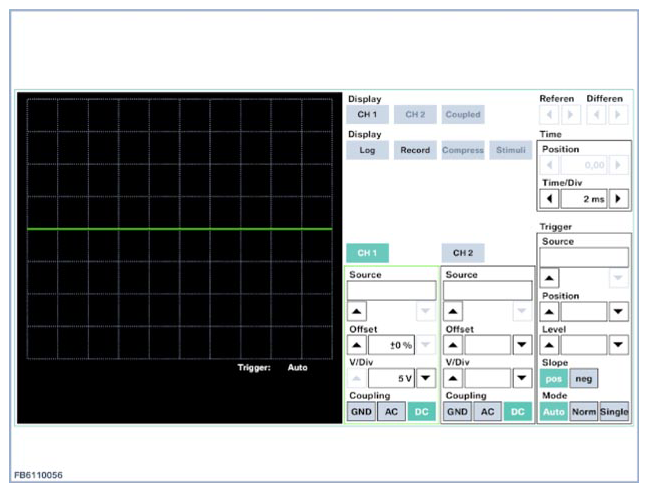

Fig 2: Display - EWS Vehicle Immobilizer Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above illustration indicates a short circuit to earth.

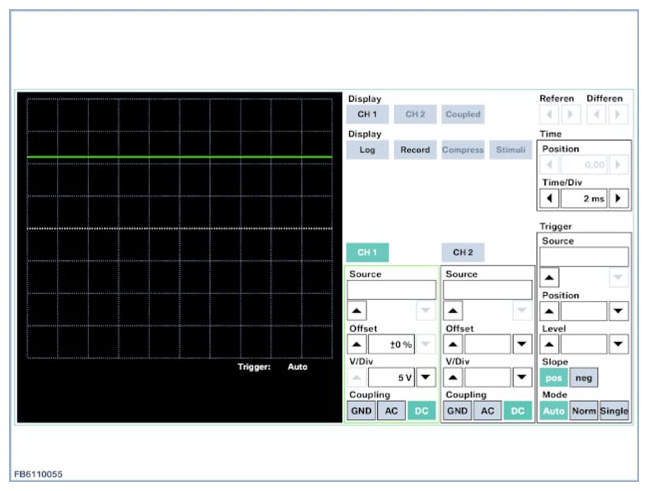

Fig 3: Display - DSC Control Unit Speed Signal Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above illustration indicates an open wire or a problem related to the DSC.
