Brief component description

The footwell module is located in the footwell on the driver's side. The footwell module and the junction box electronics control the power windows drives.

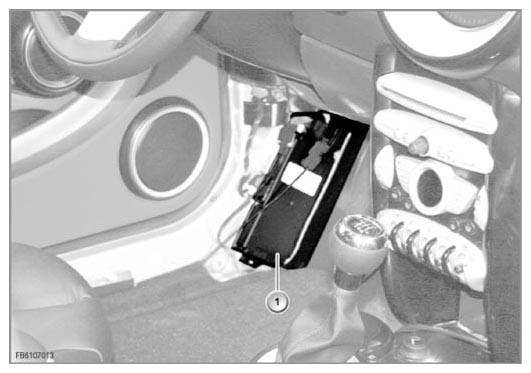

Fig 1: Identifying Footwell Module

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows installation position in the R56

Item	Explanation
1	Footwell module

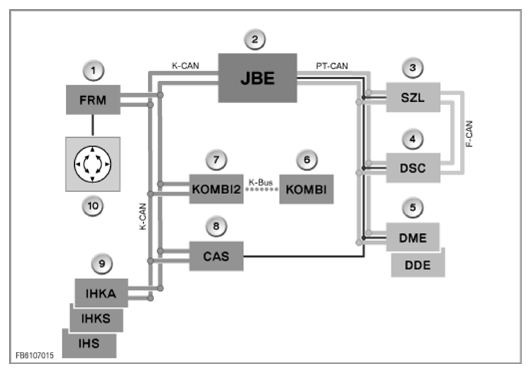

Fig 2: Junction Box Electronics - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

Block diagram for R56

Item	Explanation
1	Footwell module
2	Junction Box Electronics
3	Steering column switch cluster
4	Dynamic Stability Control
5	Engine control unit
6	Instrument panel
7	Auxiliary instrument
8	Car Access System
9	Heating/air conditioning system
10	Mirror-adjustment switch
