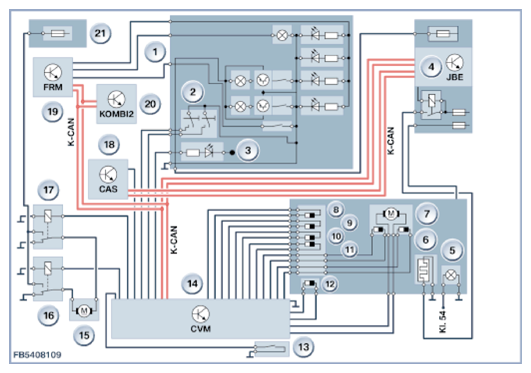

System functions: Notes
| Item | Explanation |
|---|---|
| 1 | Roof operating unit |
| 2 | Soft top button |
| 3 | Function LED |
| 4 | Junction Box Electronics (JBE) |
| 5 | Additional brake light |
| 6 | Heated rear window |
| 7 | Lock drive and folding sun roof with incremental transducer |
| 8 | Hall effect sensor, folding sunroof 70% |
| 9 | Hall effect sensor, folding sunroof 100% |
| 10 | Hall effect sensor 'main pillar set up' |
| 11 | Hall effect sensor 'main pillar stored' |
| 12 | Hall effect sensor, storage lock, left |
| 13 | Microswitch, storage shelf down |
| 14 | Convertible top module (CVM) |
| 15 | Hydraulic unit |
| 16 | Relays 1 |
| 17 | Relays 2 |
| 18 | Car access system (CAS) |
| 19 | Footwell module (FRM) |
| 20 | Auxiliary instrument (KOMBI2) |
| 21 | Power distribution box, engine compartment |
The following system functions are described for the automatic soft top:
- Opening and closing the soft top
- Conditions for opening and closing
- Pump protection counter
- Overheating protection for drive lock and folding sun roof
- Convertible top opening time display
- Check Control messages
