System functions
With the video connection function for the smartphone it is possible to play video files (films, TV programs, podcasts, etc.) saved on the smartphone on the central information display (CID) in the vehicle. The image display is only available when the vehicle is stationary for safety reasons. The image data is transmitted analogously via the CVBS line (Color Video Blanking Signal) to the headunit.

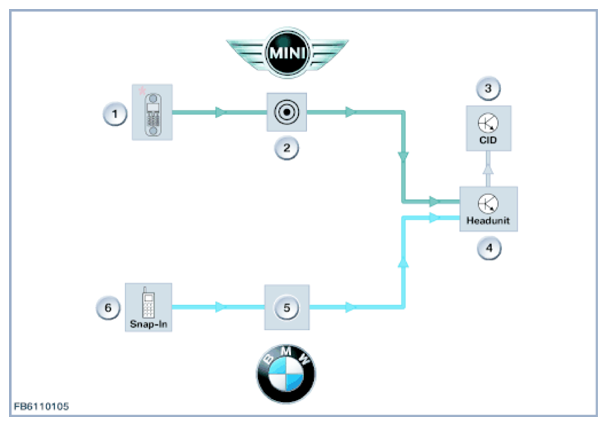

| Item | Explanation |
|---|---|
| 1 | Smartphone (connection for MINI) |
| 2 | AUX-IN connection in center console (connection for MINI) |
| 3 | Central information display (CID) |
| 4 | Headunit |
| 5 | Base plate for snap-in adapter (connection for BMW) |
| 6 | Snap-in adapter with smartphone (connection for BMW) |
As soon as the smartphone is connected with the vehicle, it appears as an external device in the CD/Multimedia menu on the CID. The videos available on the smartphone can be selected via the controller/MINI joystick. By selecting a video the smartphone is requested by the headunit to play via the USB. The smartphone issues the image data to the CVBS line via its video output. The headunit receives this image data and processes it accordingly so it can be displayed on the CID.
