00 ... ... Raising vehicle with trolley jack

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Observe the following trolley-jack-related instructions:
  1. Use only BMW-distributed/approved trolley jacks which have rubber plate contact points.
  2. Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
  3. Check the rubber plate on the trolley jack prior to each use, replacing if necessary.
Fig 1: Trolley Jack
G04725307Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: The vehicle may be raised with a trolley jack only  at the following jacking points!
Risk of damage: It is not permitted to raise the vehicle at the rear differential cover!

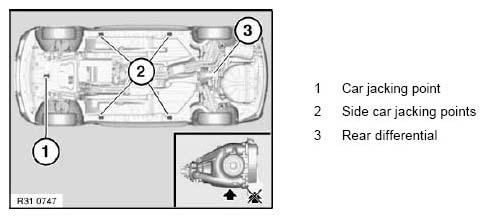

Fig 2: Vehicle Jacking Points
G04787808Courtesy of BMW OF NORTH AMERICA, INC.
