Checking Fluid Level

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, 2005 BMW 530i, and 2005 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

Check lubricant at fill hole (2). For E60 vehicles, see Fig 1 . For Z4, see Fig 2 . Lubricant should be at bottom of filler plug hole. Tighten Plug to specification. See TORQUE SPECIFICATIONS .

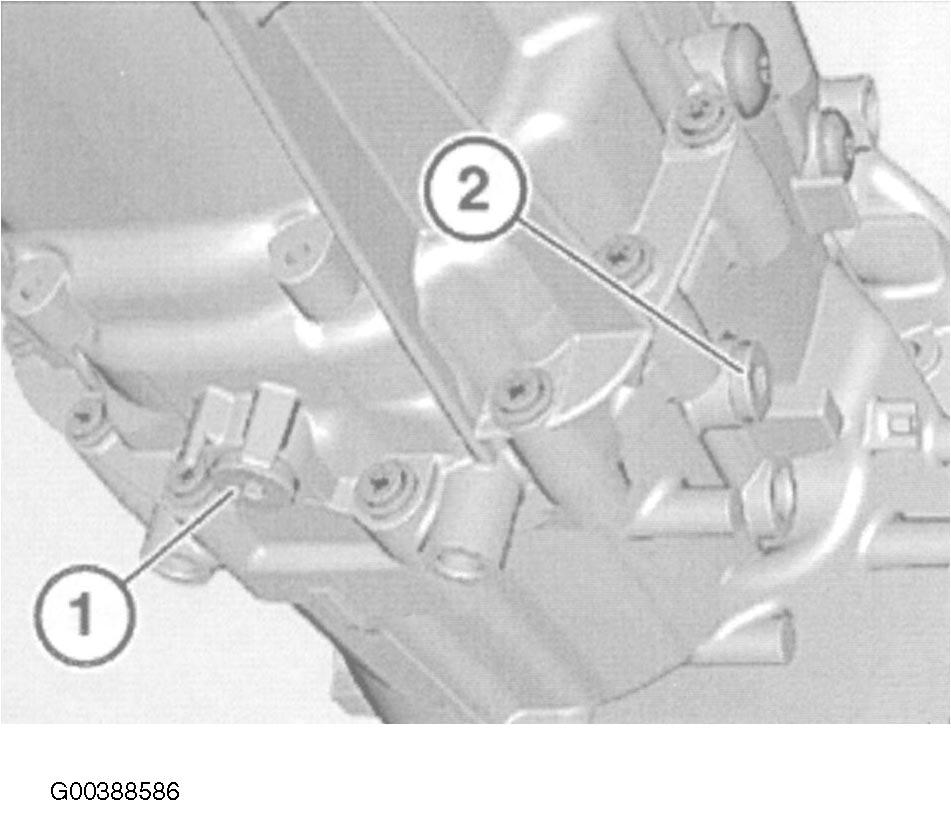

Fig 1: Locating Transmission Oil Drain & Filler Plug (E60)

Courtesy of BMW OF NORTH AMERICA, INC.

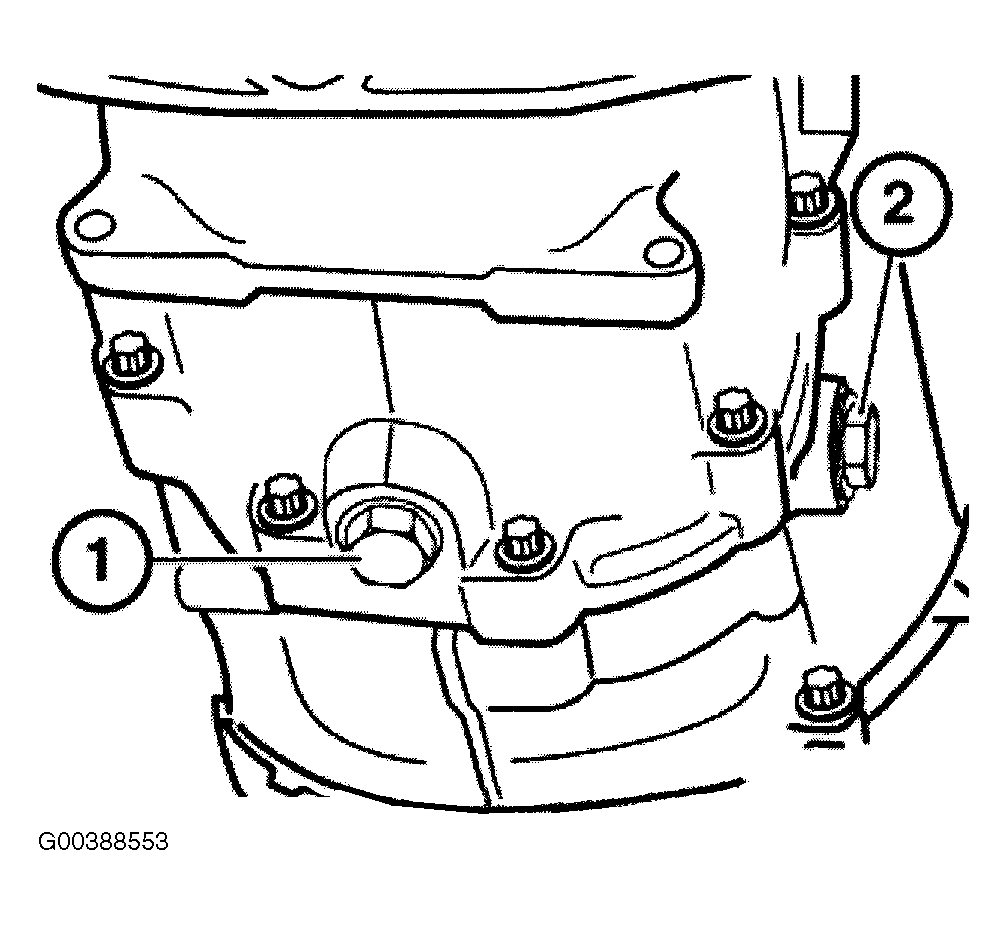

Fig 2: Locating Transmission Oil Drain Plug & Filler Plug (Z4)

Courtesy of BMW OF NORTH AMERICA, INC.
