32 00... General Chassis And Suspension Definitions

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

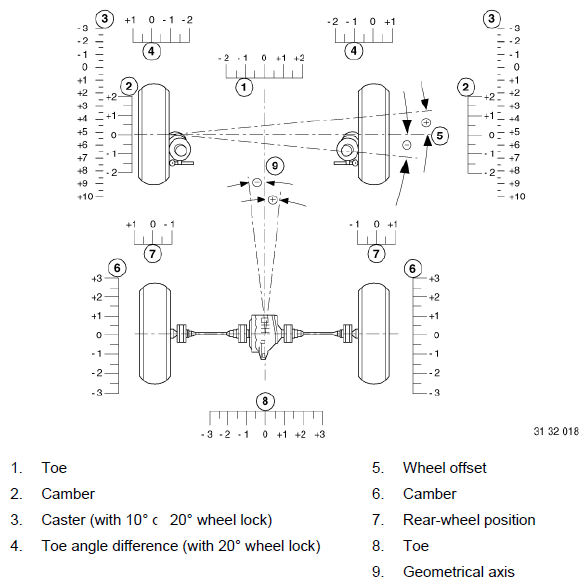

Fig 1: General Chassis & Suspension Definitions
G06175759Courtesy of BMW OF NORTH AMERICA, INC.
