63 11... Installing headlight repair kit

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work: Remove headlight .

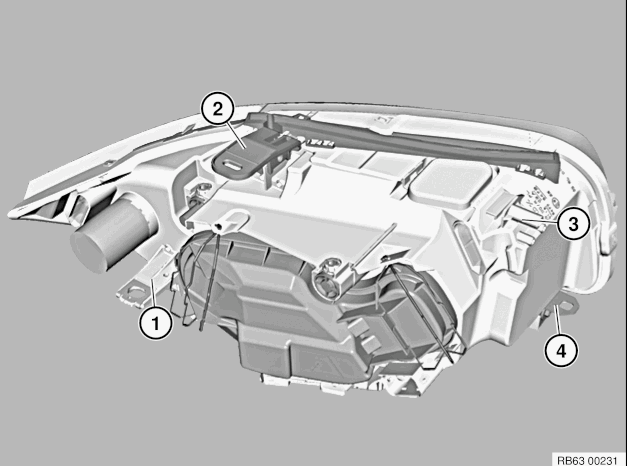

Damaged holders can be replaced with repair kit (1, 2, 3, 4). Replacement of headlight is not required!

Fig 1: Identifying Damaged Holders

G00532626

Courtesy of BMW OF NORTH AMERICA, INC.

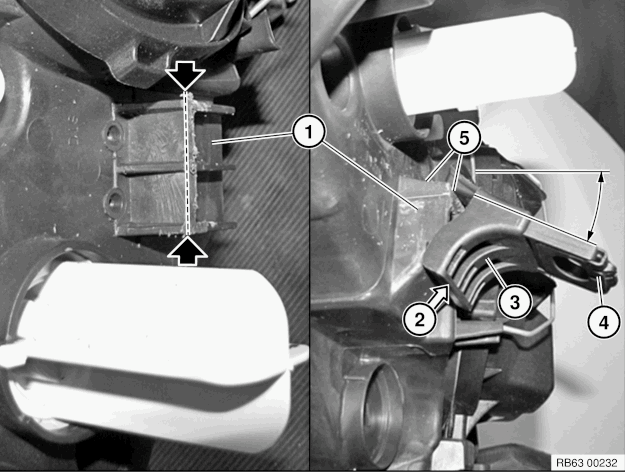

Retaining tab 1 of first image: Remove damaged holder (1) up to the line marked with arrows. Mount holder from repair kit (3) as shown at position (2) and swing upward. Tighten screws (5). Slide on clamp (4) onto retaining tab (3).

Fig 2: Identifying Retaining Tab 1

G00532627

Courtesy of BMW OF NORTH AMERICA, INC.

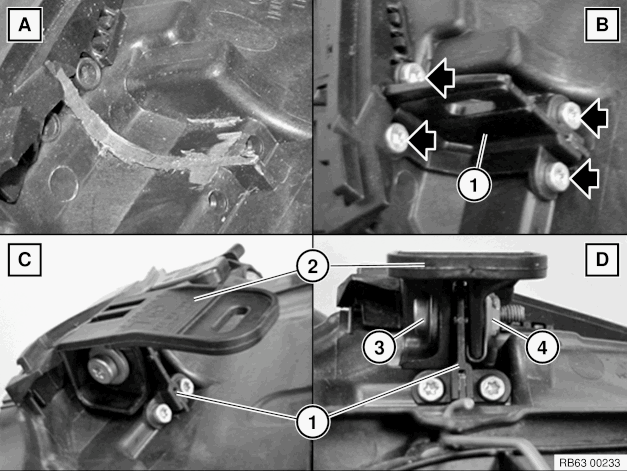

Retaining tab 2 of first image: A: Remove damaged holder as shown. B: Mount the holder from repair kit (1) as shown. Tighten the screws (see arrows). C. Mount holder (2) on holder (1) as shown. D: Screw holder (2) onto holder (1) using screw (3) and nut (4).

Fig 3: Identifying Retaining Tab 2

G00532628

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining tab 3 of first image: A: Remove the damaged holder (1) as shown in the figure. B: Slide in holder from repair kit (2) on the side. Tighten screws (3).

Fig 4: Identifying Retaining Tab 3

G00532629

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining tab 4 from first image: A: Remove the damaged holder (1) as shown in the figure. B: Mount the holder from repair kit (3) as shown. Tighten screws (2). C: Mount metal bracket (4). Tighten screw (5).

Fig 5: Identifying Retaining Tab 4

G00532630

Courtesy of BMW OF NORTH AMERICA, INC.

After installation: Adjust headlights
