61 13 .. Unlocking and disconnecting different plug connections

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

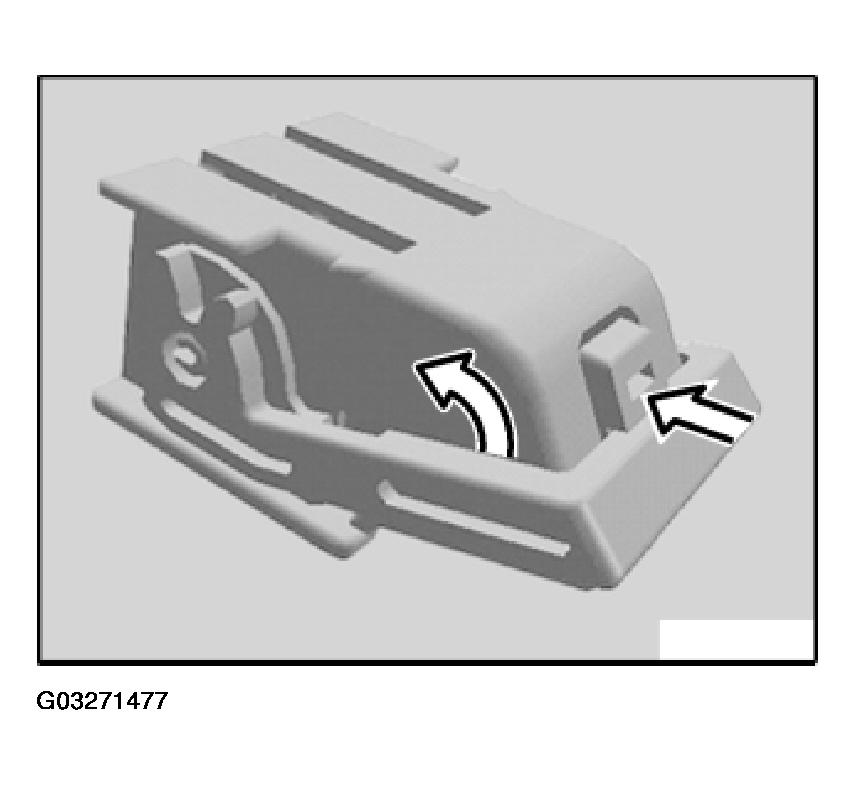

Fig 1: Disconnecting Plug Connection (1 Of 9)

G03271477

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

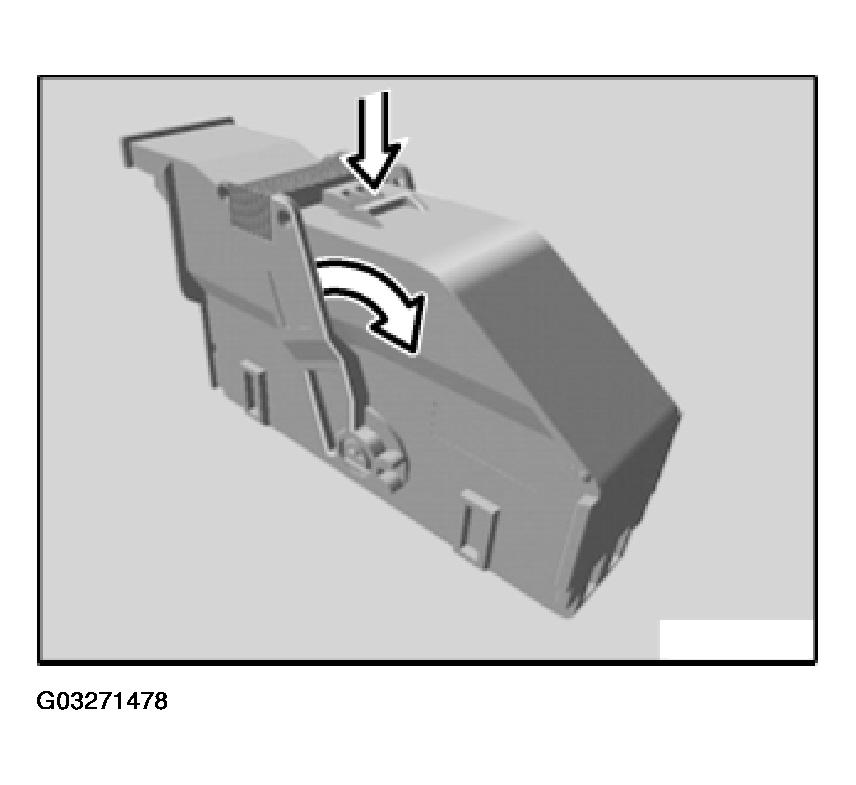

Fig 2: Disconnecting Plug Connection (2 Of 9)

G03271478

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

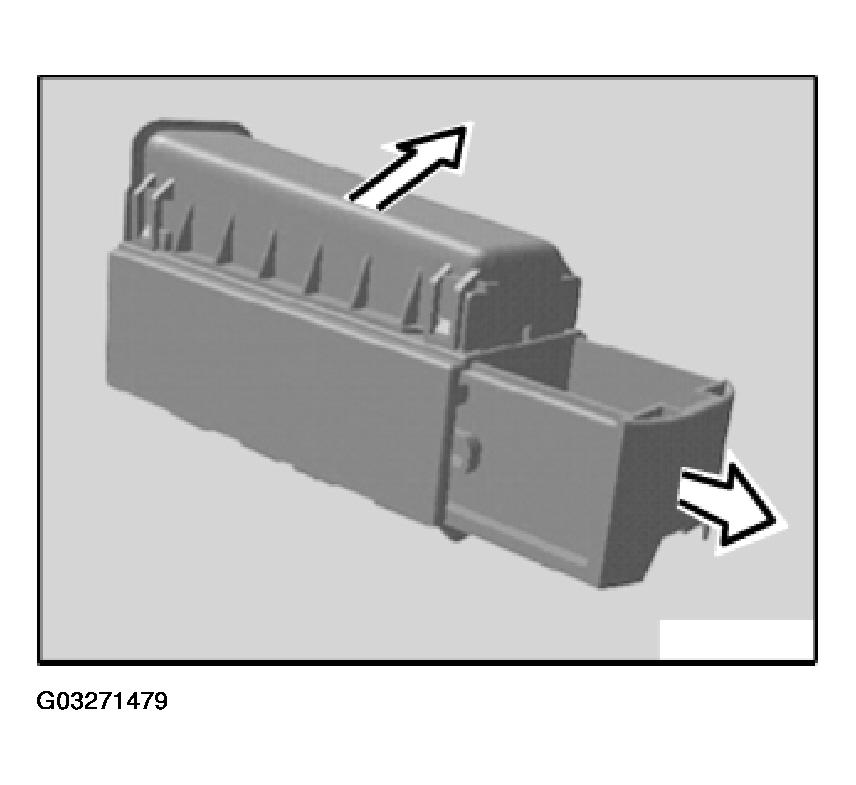

Fig 3: Disconnecting Plug Connection (3 Of 9)

G03271479

Courtesy of BMW OF NORTH AMERICA, INC.

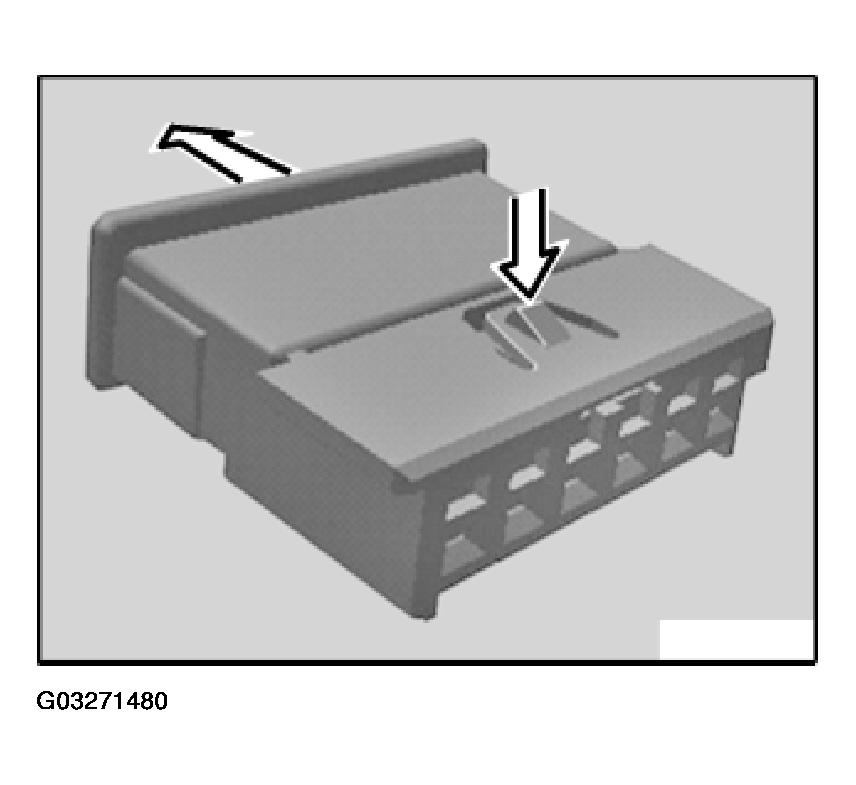

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Disconnecting Plug Connection (4 Of 9)

G03271480

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

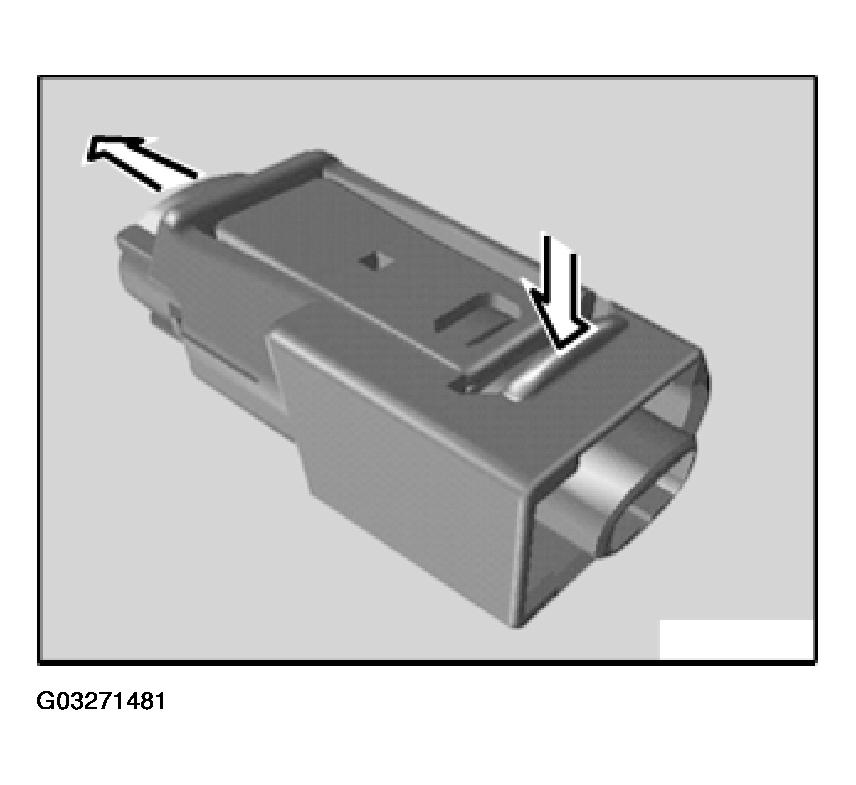

Fig 5: Disconnecting Plug Connection (5 Of 9)

G03271481

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

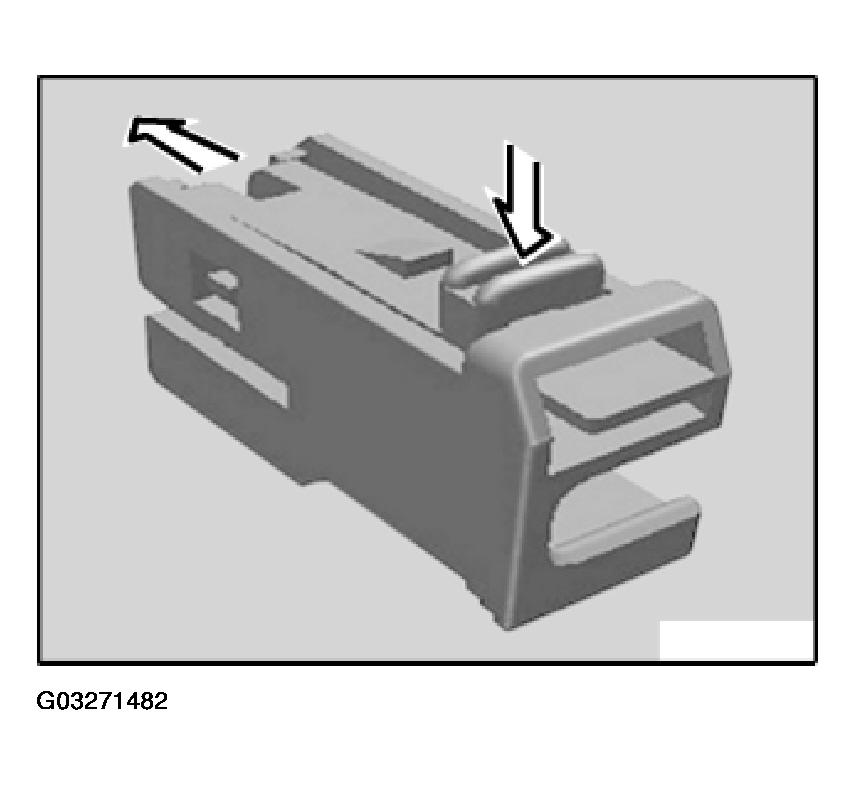

Fig 6: Disconnecting Plug Connection (6 Of 9)

G03271482

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

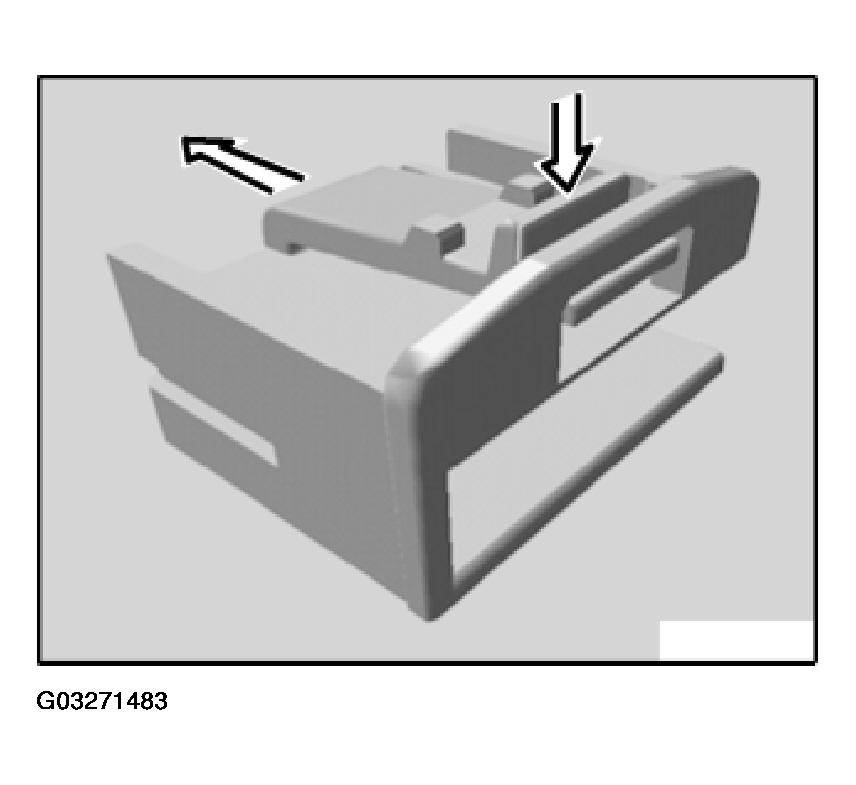

Fig 7: Disconnecting Plug Connection (7 Of 9)

G03271483

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

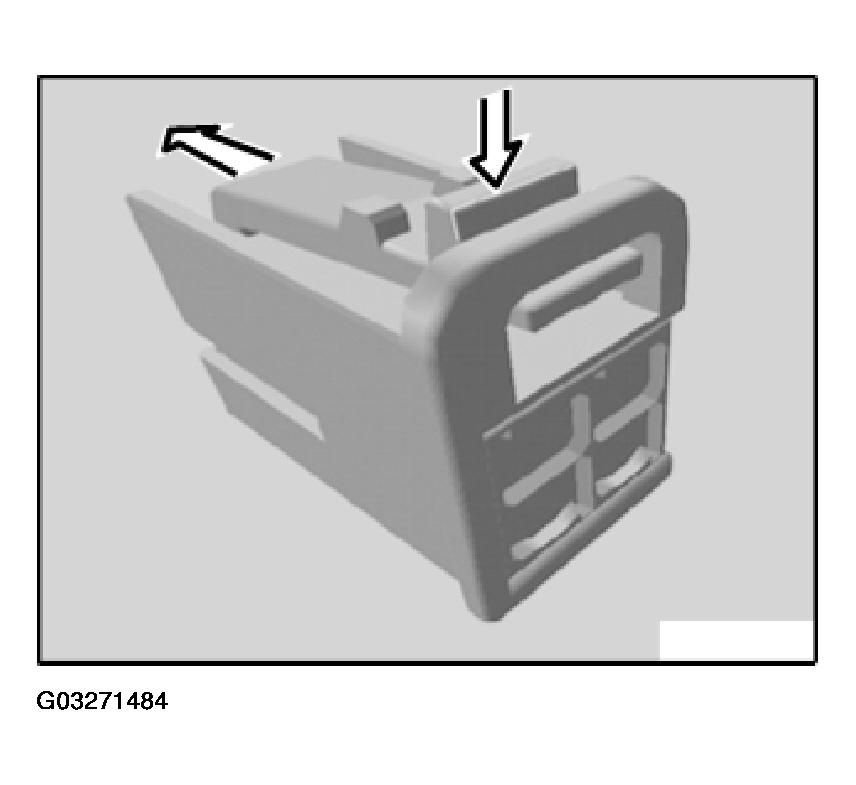

Fig 8: Disconnecting Plug Connection (8 Of 9)

G03271484

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

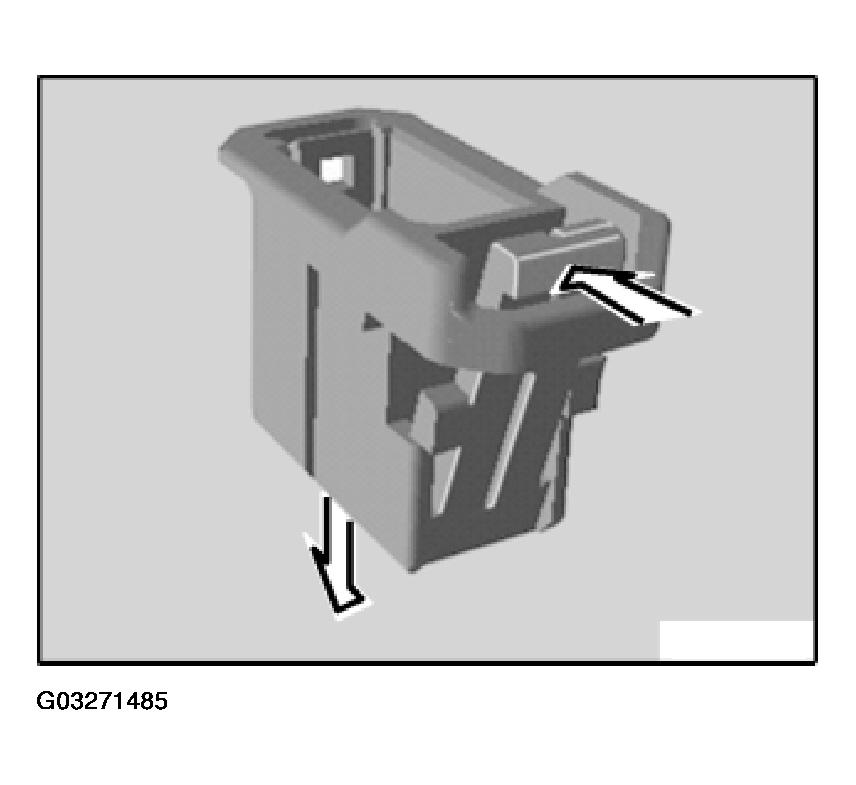

Fig 9: Disconnecting Plug Connection (9 Of 9)

G03271485

Courtesy of BMW OF NORTH AMERICA, INC.
