62 16 071 Removing And Installing Speedometer-Display Sensor: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

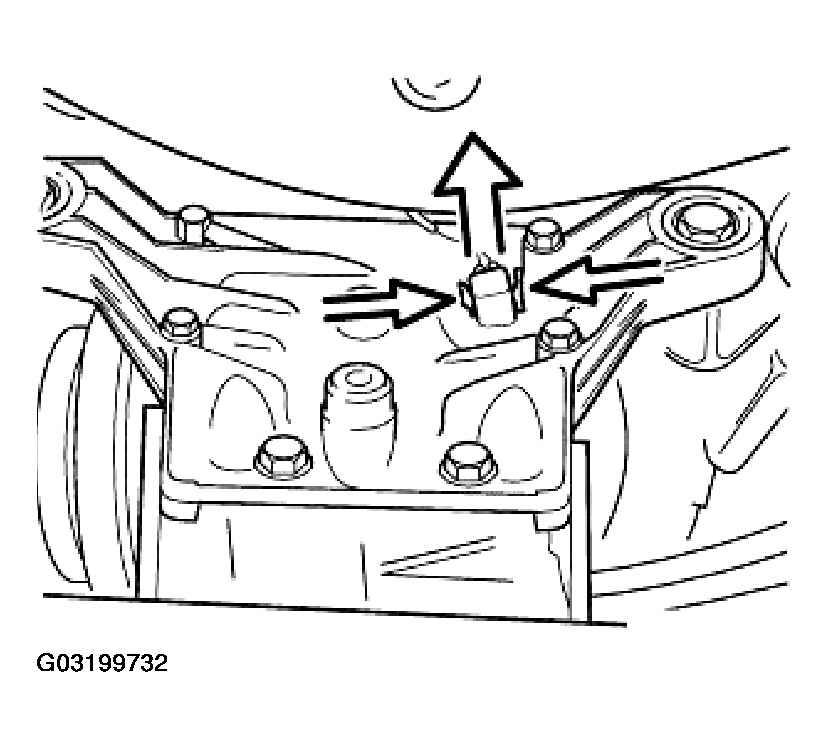

Disconnect plug-in connection at rear axle.

Fig 1: Disconnecting Plug-In Connection

Courtesy of BMW OF NORTH AMERICA, INC.

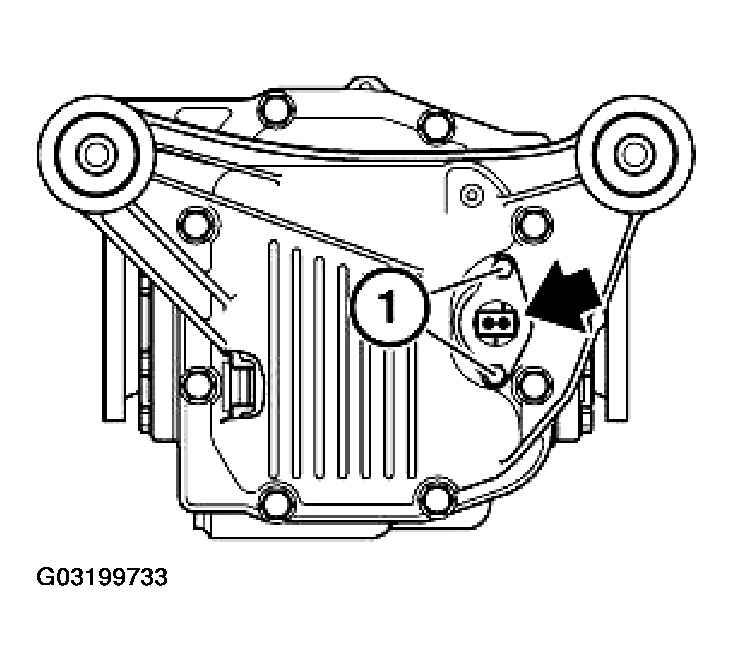

Unfasten screws (1) and remove speedometer-display sensor.

Fig 2: Removing Speedometer-Display Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
