31 11 001 Replacing front axle support
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Before removing front axle support:
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.
WARNING:
SECURE ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL
to prevent it from falling down.
Necessary preliminary tasks
- Lower front axle support
- Remove BOTH LOWER WISHBONES FROM FRONT AXLE SUPPORT .
- Remove BOTH TRAILING LINKS FROM FRONT AXLE SUPPORT .
- Remove HYDRAULIC STEERING GEAR .

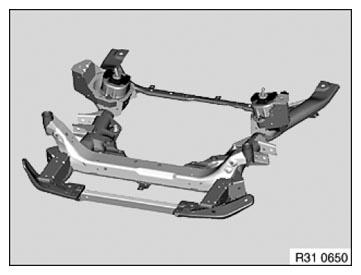

Graphic shows: F01
Remove both engine mounts from front axle support . See 22 11 001 REPLACING RIGHT ENGINE MOUNT (N63) or 22 11 011 REPLACING LEFT ENGINE MOUNT (N63) .
Take front axle support down and set down on a suitable surface.
Installation note:
Use previous front axle support as a template for modifying or replacing small parts.
Installation note:
Only on F01/02 vehicles with ARS:
Adapt holder of ARS hydraulic line if required.

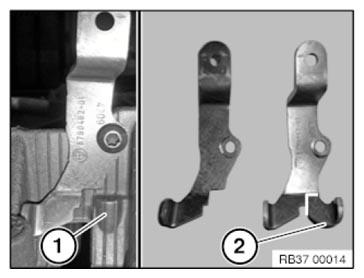

Due to a modification on axle support (1), if necessary cut off tab (2) at the mark!
After installation
- Perform wheel alignment check . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
