CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

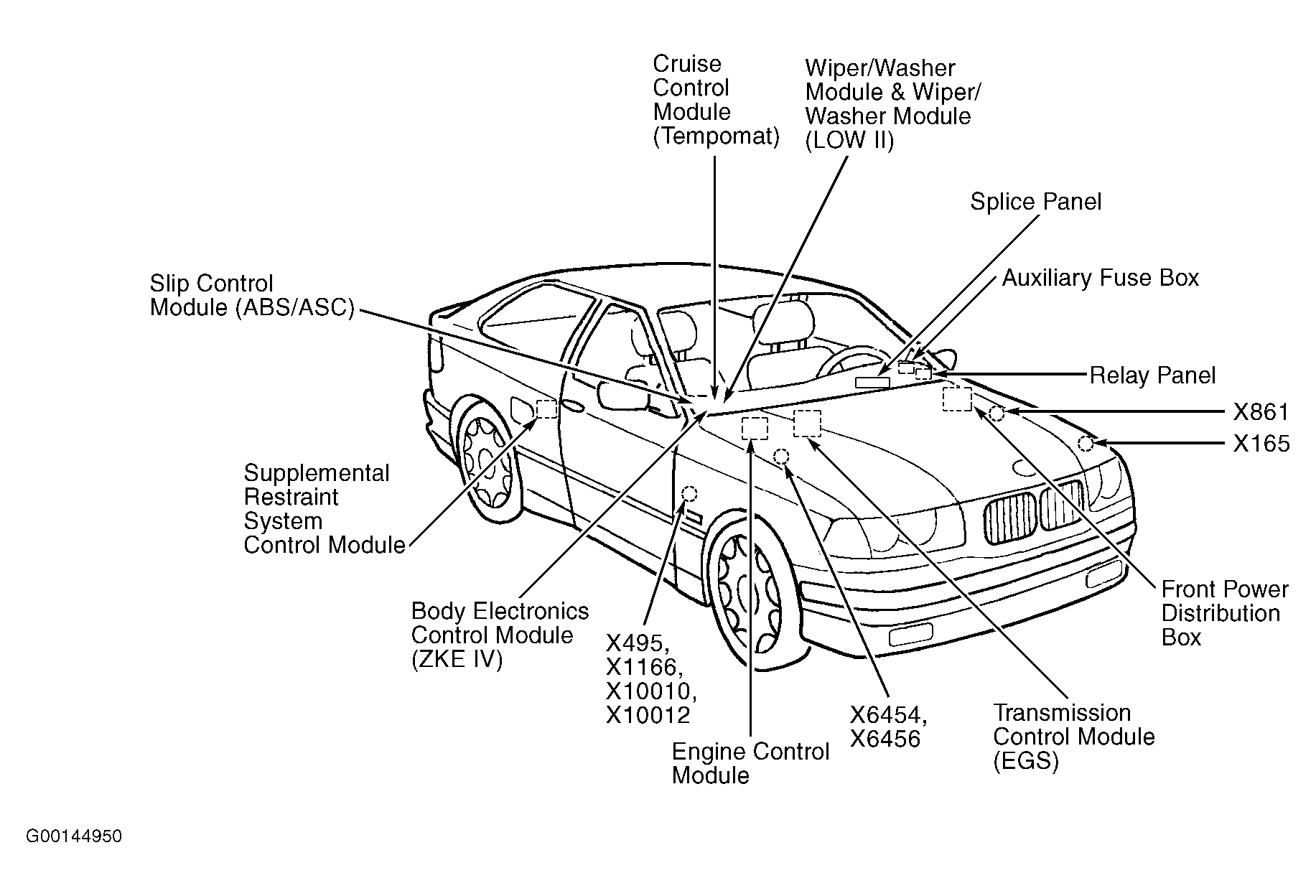

| Auxiliary Fuse Box | Under left side of dash. See Figure . |

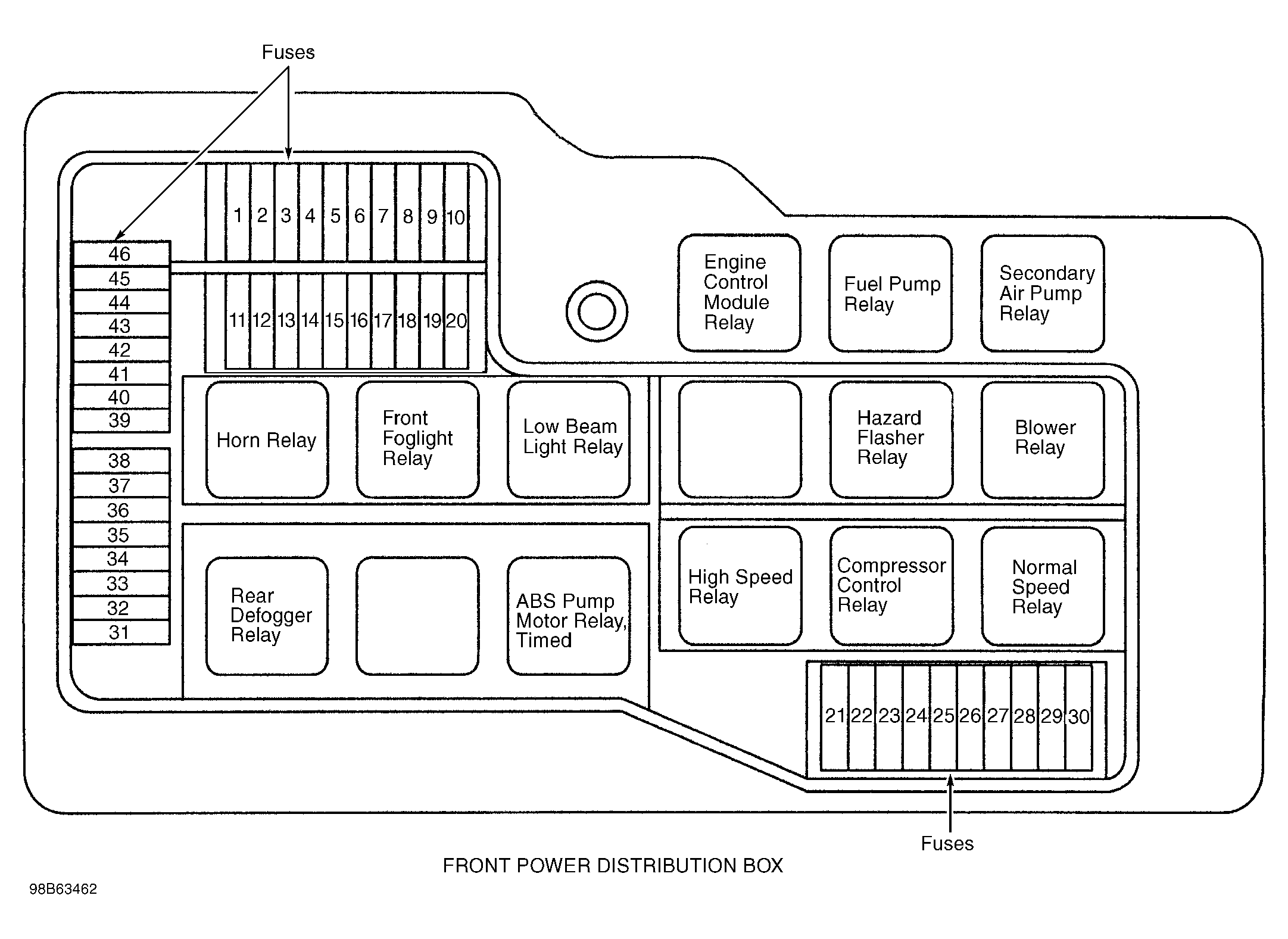

| Front Power Distribution Box | In left rear corner of engine compartment. See Figure . |
| Fuses | In front power distribution box. See Figure . |
| Fusible Link | On rear of engine compartment. |
| Relay Panel | Under left side of dash. See Figure . |
| Splice Panel | Under left side of dash. See Figure . |
