Wheel arch, front, complete

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

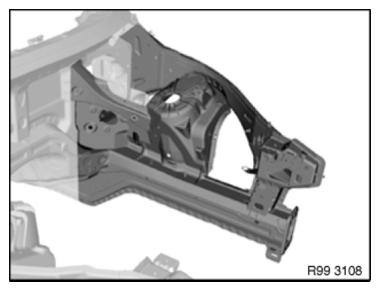

Inner side shown

Fig 1: Identifying Paint Applying Areas On Front Wheel Arch (Inner Side)

Courtesy of BMW OF NORTH AMERICA, INC.

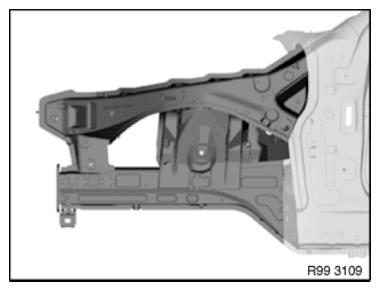

Outer side shown

Fig 1: Identifying Paint Applying Areas On Front Wheel Arch (Outer Side)

Courtesy of BMW OF NORTH AMERICA, INC.
