Front door

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Area specification applies to paint stage 1.

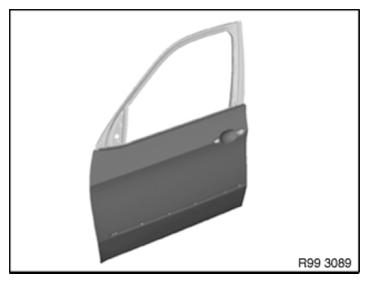

Fig 1: Identifying Paint Applying Areas On Front Door (Area Specification Applies To Paint Stage 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Area specification applies to paint stages 2 and 3.

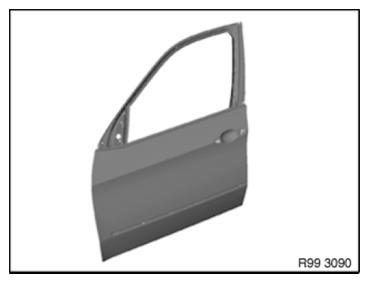

Fig 1: Identifying Paint Applying Areas On Front Door (Area Specification Applies To Paint Stages 2 And 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Additional area specification inner panel for paint stages 2 and 3.

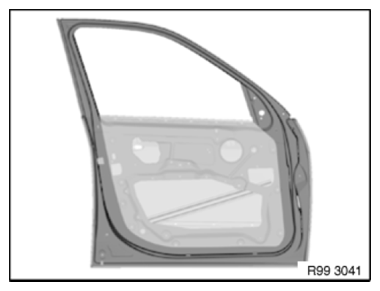

Fig 1: Identifying Paint Applying Area On Front Door

Courtesy of BMW OF NORTH AMERICA, INC.
